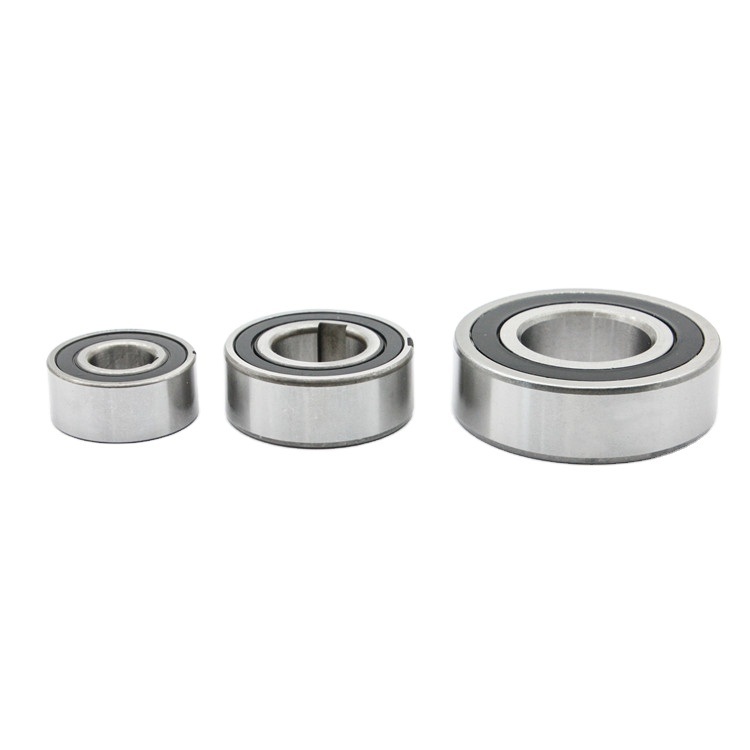

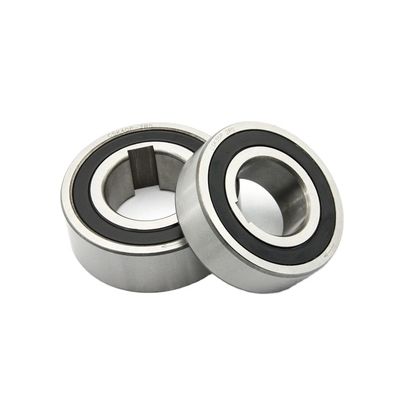

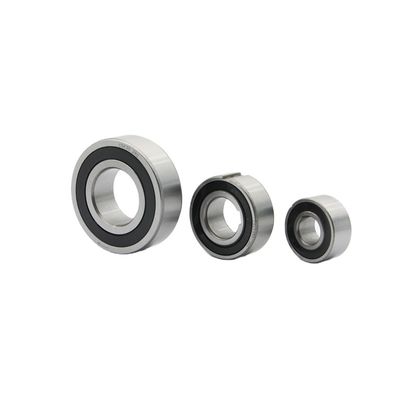

CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery

CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery

  • CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery
  • CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery
  • CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery
CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA or OEM
Nomor model: CSK356218
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $2.50-3
Kontak
Detil Deskripsi produk
Peringkat presisi: P0 Tipe Segel: Tertutup
Tipe bantalan: Sprang Bahan: GCR15
Torsi nominal: 325 Nm Kecepatan Max: 15000 min-1
Ukuran Bore: Hingga 40 mm Beban dinamis: 15,54 kN
Beban statis: 12,25 kN Berat: 0,5 kg
Torsi seret: 7 Ncm Diameter dalam: 8-40 Mm
Diameter luar: 22-80 Mm Panjang: 9-27 Mm
Seri bantalan: 6201-6207
Menyoroti:

CSK356217 One Way Clutch Bearing

,

CSK356218 Sprag Clutch Bearing

,

Precision Rating P0 Freewheel Clutch Bearing

CSK356217 CSK356218 Sprag One Way Clutch Bearing for Rice Milling Machinery
Product Description

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing properties. The freewheels are supplied grease-filled for normal operating conditions.

The freewheel is built into the customer housing, enabling compact, space-saving fitting solutions.

Applications
  • Backstops
  • Overrunning Clutches
  • Indexing Freewheels

Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.

Technical Specifications
Type Size Bearing series TKN1 N max D L C C0 Weight TR
CSK (KK) 8* - 2.5 15000 22 9 3.28 0.86 0.015 0.5
CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery 0 CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery 1 CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery 2
Mounting Example
CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery 3 CSK356217 CSK356218 Sprag One Way Clutch Bearing with Precision Rating P0 for Rice Milling Machinery 4
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get the samples from you?
It is highly encouraged to ask for the samples for quality check.
Can you promise to deliver the goods in time?

Small items: In stock.

Medium Items: 10-15 Days

Big items: 20-25 Days

Label:

Sprag Clutch One Way Bearing,

Sprag One Way Clutch Bearing,

Freewheel One Way Sprag Clutch
