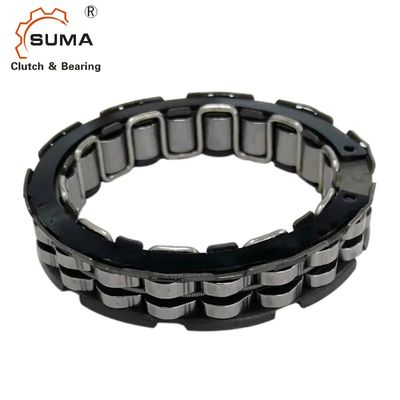

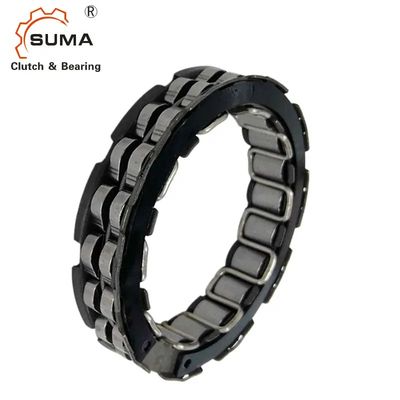

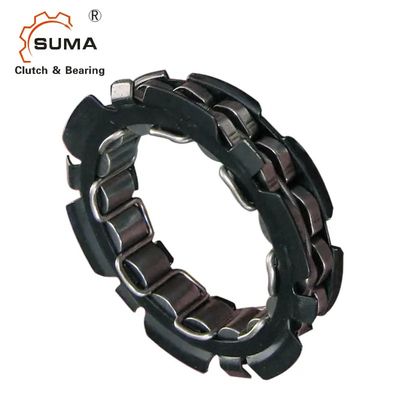

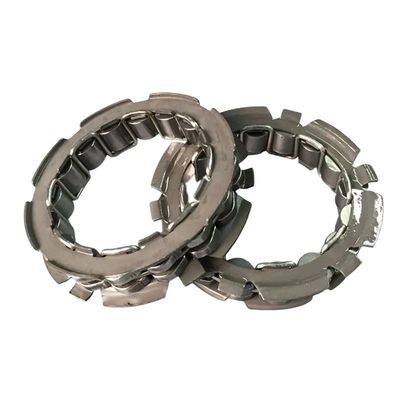

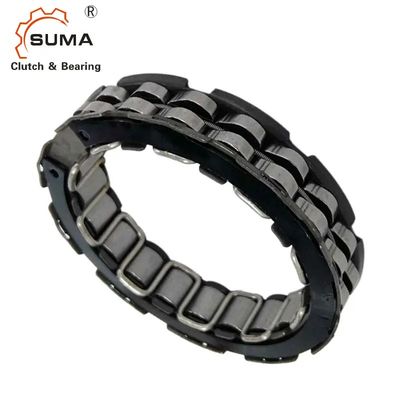

Name: Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FWD 332008 PRB
Price: 7.50 USD
Availability: InStock

Rumah Produk Bantalan Kopling Satu Arah

Chrome Steel One Way Bearing with 13.3mm Thickness and 45 Kgf-m Torque for Motorcycle Starting Clutch

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	SUMA
Nomor model:	FWD 332008 PRB

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2
Harga:	$7.50-8

Kontak

Detil Deskripsi produk

Peringkat presisi:	P0	Tipe Segel:	Membuka
Jenis:	Sprang	Bahan:	Baja krom
Ketebalan:	13,3 mm	Torsi:	45 Kgf-m
Berat:	92 g	Balapan Batin:	51,71mm
Balapan luar:	68,377mm	Wmin:	13,3 mm
A:	71 mm	B:	74 mm
C:	1,0 mm	Terima kasih:	45 Kgf-m
Berat:	98 g
Menyoroti:	13.3mm Thickness One Way Bearing , 45 Kgf-m Torque Sprag Type Bearing , P0 Precision Rating One Way Clutch Bearing

One Way Bearing FWD332008PRB One Way Sprag Type Bearing

One Way Bearing FWD332008CRB One Way Sprag Type Bearing

Product Description

Application: Primarily used on motorcycle starter
Delivery time: 1 day for the sample, 7 days for bulk orders
Payment terms: TT, L/C, D/P, D/A, Western Union
Package: Wooden box, pulley or customizable packaging

Technical Specifications

Type	Inner race (mm)	Outer race (mm)	Wmin (mm)	A (mm)	B (mm)	C (mm)	Tkn (Kgf-m)	Weight (g)
FWD331608CRS	39.627	56.294	13	60	62	1.0	27	78
FWD331808CRS	45.665	62.332	13.3	65	68	1.0	35	88
FWD332008CRS	51.71	68.377	13.3	71	74	1.0	45	98
FWD332211CRS	57.76	74.427	16.3	76	79	1.0	78	14
