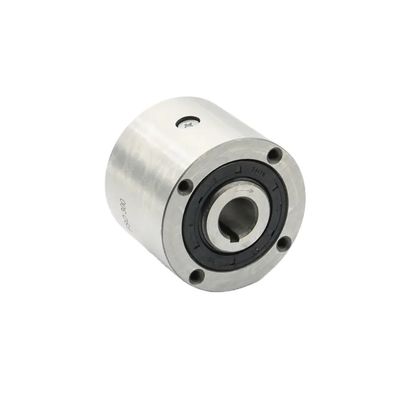

Name: FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: Seri FS/HPI
Price: 179.00 USD
Availability: InStock

Rumah Produk Bantalan Kopling Satu Arah

FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	SUMA OR OEM
Nomor model:	Seri FS/HPI

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2
Harga:	$129-229

Kontak

Detil Deskripsi produk

Peringkat presisi:	P0	Jenis:	Sprag, jenis roller
Bahan:	GCR15	Lebar:	63.5-127mm
Berat:	1.6-19kg	Torsi:	450-3000nm
Diameter dalam:	15-70mm	Diameter luar:	76.2-180.975mm
Pelumas:	Pelumas bubuk MOS2	Beban dinamis:	245kn
Beban statis:	1220kn	Kecepatan melebihi:	3000/900 Min-1
Torsi seret:	18-156 NCM	Jenis segel:	Segel bibir, segel labirin
Dukungan Bantalan:	dua bantalan bola
Menyoroti:	HPI sprag freewheel clutch bearing , high torque one way clutch bearing , FS600 FS700 FS800 clutch bearing

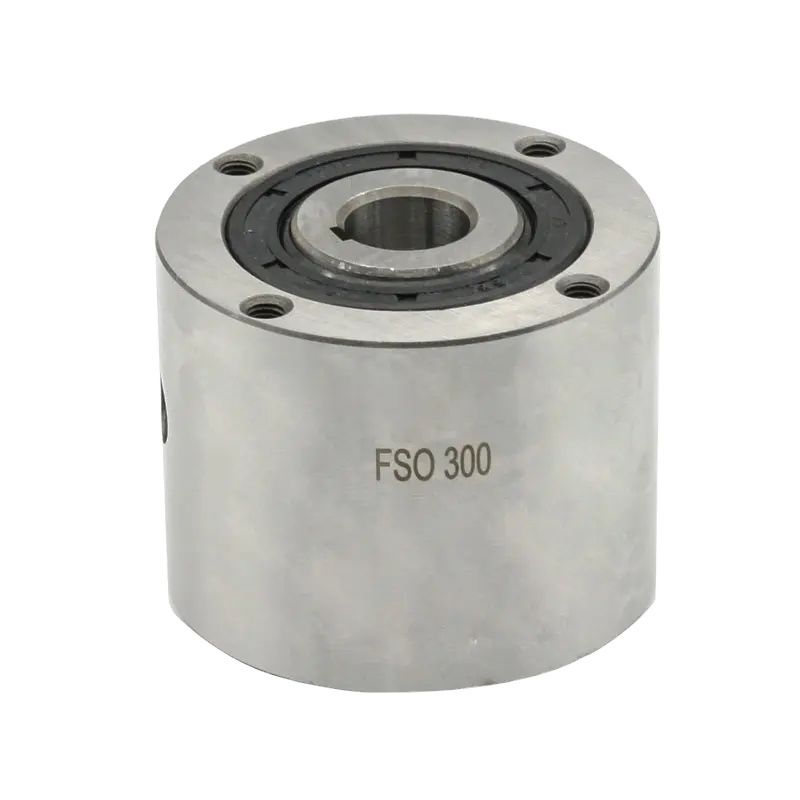

FS600 FS700 FS800 HPI Sprag Type Freewheel Clutch One Way Bearing

The FS600, FS700, and FS800 HPI series are high-performance sprag type freewheel clutch bearings designed for one-directional operation in industrial machinery applications.

Product Specifications

Model:

HPI / FS / FSO

Material:

GCr15

Type:

Sprag

Inner Diameter:

15-70mm

Outer Diameter:

76.2-180.975mm

Weight:

1.6-19kg

Lubricant:

MoS2 powder lubricant

Load Ratings:

Dynamic: 245KN | Static: 1220KN

Application:

Industrial Machines

Key Features

Sprag type freewheels are self-contained, sealed and bearing supported
Utilizes two ball bearings for enhanced durability
Available with oil or grease lubrication depending on type
Full sprag complement provides high torque capacity for given diameter
Overload protection through sprag-to-sprag abutment prevents sprag tilt
HPI models are oil lubricated with standard shaft lip seals
FSOGR models are grease lubricated with optional labyrinth seals
HPI series specially designed for high-speed indexing applications

Technical Specifications Table

Type	Size	Overrunning speeds	Drag Torque [Nm]	nmax [min-1]	dH7-bxh [mm]	d4 [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	K [mm]	f [mm]
HPI/FS 300	379	3000/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	13	0.8	1.6	18
HPI/FS 400	407	2800/850	18-6x6	12...22	69.9	88.9	68.07	1.6	30	73	13	0.8	2.7	27
HPI/FS 500	1621	2500/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	16	1.5	4.8	31
HPI/FS 600	3105	2200/750	45-14x9	24...57	95.3	136.53	92.2	1.6	63.5	120.6	16	1.6	8.6	62
HPI/FS 700	6900	1600/450	60-18x11	48...82	127	180.98	123.9	1.6	90	158.8	20	1.6	19	156
