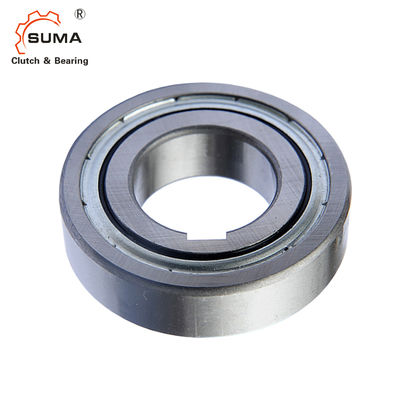

BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque

BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque

  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
  • BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA or OEM
Nomor model: BB 17-2K-K
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $6-6.80
Kontak
Detil Deskripsi produk
Peringkat presisi: P0 Tipe Segel: Tertutup
Jenis: Sprang Bahan: GCR15
Diameter luar: 40 mm Ukuran Bore: 17 mm
Kapasitas torsi: 43 nm Max overrunning (bagian dalam): 3500 putaran/menit
Max overrunning (luar): 1900 putaran/menit Torsi seret: 0,01 n*m
Berat: 80 n Beban bantalan cr: 7000 n
Beban bantalan cor: 3700 n Suhu operasi: -30°C hingga +100°C
Poros Dia. Toleransi: 17+0,023+0,012
Menyoroti:

17mm one way clutch bearing

,

40mm OD sprag clutch bearing

,

43Nm torque one way bearing

BB17 BB17-1K-K BB17-2GD One Way Sprag Backstop Bearings Cam Clutch Bearing
BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 0 BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 1
Product Specifications
Item BB 17-2K-K
Material GCr15
Outer dia. 40 mm
Bore size 17 mm
Torque Capacity 43 Nm
Max. Overrunning (inner race) 3500 r/min
Max. Overrunning (outer race) 1900 r/min
Port Shanghai; Ningbo
Delivery time 10-15 days
Features & Installation Guidelines
  1. BB series Cam Clutch is designed for press fit installation.
  2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race.
  3. BB-2K-K series has a keyway on both the inner and outer race.
  4. Correct interference dimensions at the shaft and housing must be maintained.
  5. Refer to the table for tolerance of the shaft and housing for each series.
  6. BB, BB-1K and BB-2K Clutches have dust seal protection against particles of 0.25mm and over.
  7. The arrow on the inner race shows the direction of inner race engaging.
  8. To install the clutch, use a press tool of the appropriate diameter.
  9. Do not hammer or apply other shock to the clutch.
  10. Make sure the housing has enough strength for press fitting installation.
  11. Operating temperature range: -30°C to +100°C.
BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 2 BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 3 BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 4 BB17 Sprag Clutch Bearing 17mm Bore 40mm OD 43Nm Torque 5
Dimensions and Capacities
Model Torque Capacity (N*m) Max. Overrunning (r/min) Drag Torque (N*m) Dimensions (mm) Weight (N) Bearing Loads (N)
BB17 43 3500/1900 0.01/0.05 17×40×17 100 7000/3700
Tolerance for Shaft and Housing
Model Shaft Dia. Housing Dia.
BB17 17+0.023+0.012 40-0.012-0.028
BB17-2GD 17+0.023+0.012 40-0.012-0.028
Lubrication
  1. Grease is already applied before delivery.
  2. If using oil lubricant, apply inside the unit always.
  3. Do not use greases or lubricants with EP additives.
FAQ
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get the samples from you?
It is highly encouraged to ask for the samples for quality check.
Can you promise to deliver the goods in time?

Small items: In stock.

Medium Items: 10-15 Days

Big items: 20-25 Days

Label:

Sprag Clutch One Way Bearing,

Sprag One Way Clutch Bearing,

Freewheel One Way Sprag Clutch
