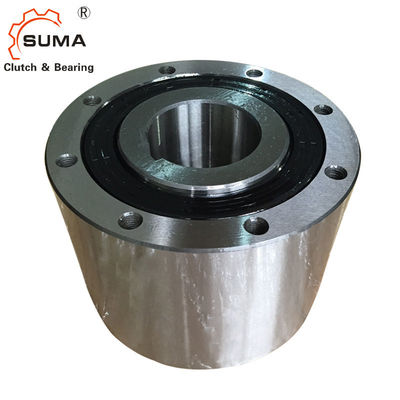

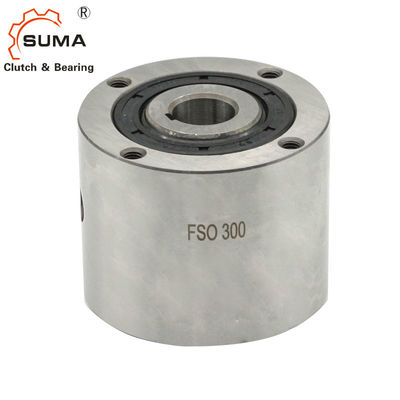

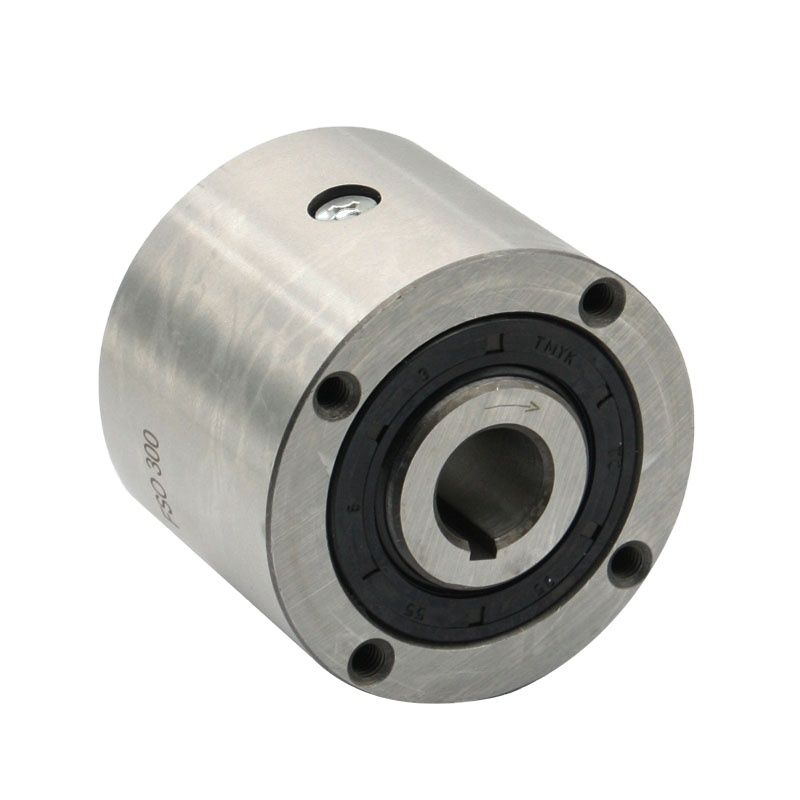

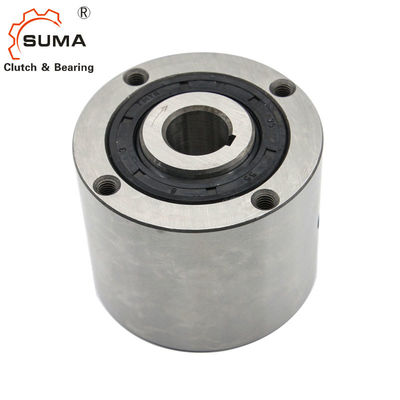

FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque

FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque

  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
  • FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA or OEM
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak
Detil Deskripsi produk
Kecepatan balapan batin: 1600-3000 min-1 Kecepatan Balap Luar: 450-900 min-1
Kapasitas torsi: 379-6900 nm kisaran berat: 1.6-19 kg
Jenis Pelumasan: Gemuk Diameter bore: 15-5x5 hingga 175-45x25 mm
Tinggi a: 63.5-168.3 mm Tinggi b: 76.2-381 mm
Tinggi c: 60.45-165.1 mm Dimensi e: 1.6-3.2 mm
Dimensi f: 28.58-228.6 mm Dimensi g: 66.67-298.45 mm
Dimensi k: 13-32 mm Dimensi f: 0.8-3.2 mm
Torsi seret: 18-156 NCM
Menyoroti:

FSO300-700 one way clutch bearing

,

backstop cam clutch 379-6900 Nm torque

,

one way bearing with high torque

FSO Series FSO300-700 Backstop Cam Clutch One Way Bearing FSO300
FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 0 FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 1
Product Introduction

The FSO, FS, and HPI 750 to 1027 series are sprag type freewheels that are self-contained, sealed, and bearing supported, using two ball bearings. Units are delivered oil or grease lubricated according to type.

Based on Formsprag USA design, these units feature tall sprags with multi-radius active surfaces, specially engineered for large size freewheels to compensate for any eccentricity due to bearing wear.

FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 2
FSO/HPI 300-700 Specifications
Type Size Overrunning Speeds Weight Torque Drag
FSO 300 3000/900 18 kg 1.6 Ncm
FSO-GR 400 2800/850 27 kg 2.7 Ncm
HPI 500 2500/800 31 kg 4.8 Ncm
600 2200/750 62 kg 8.6 Ncm
700 1600/450 156 kg 19 Ncm
FSO/HPI 750-1027 Specifications
Type Torque Capacity Overrunning Speed Weight Drag Torque
750 9660 Nm 1800/650 38 kg 5.08 Ncm
800 17940 Nm 1500/525 46 kg 7.12 Ncm
900 24408 Nm 1350/500 71 kg 8.47 Ncm
1027 36612 Nm 700/375 113 kg 13.56 Ncm
Technical Notes
  • T max = 2 × T KN
  • Inner race/outer race labyrinth seal
  • Inch bore available on request
  • Size 600 > 50 mm
  • Size 700 > 75 mm

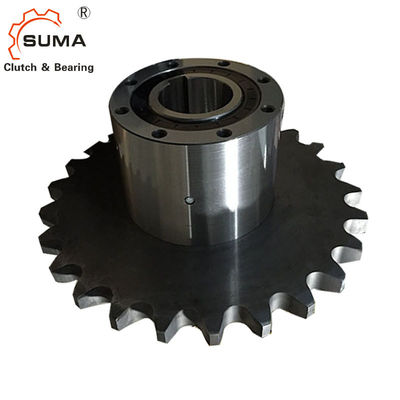

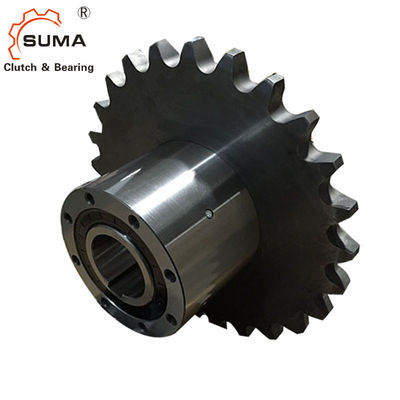

Mounting Example
FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 3 FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 4 FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 5 FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 6
Packaging
FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 7 FSO300-700 Backstop Cam Clutch One Way Bearing 379-6900 Nm Torque 8

Label:

Sprag Clutch One Way Bearing,

Sprag One Way Clutch Bearing,

Freewheel One Way Sprag Clutch
