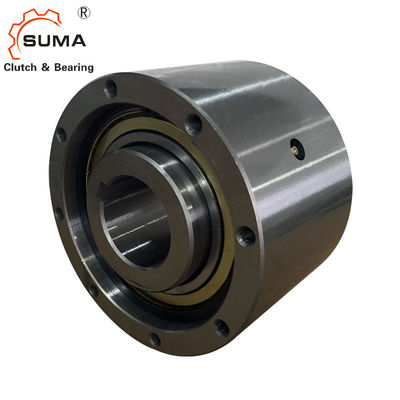

Name: MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: MX35
Price: 567.60 USD
Availability: InStock

Rumah Produk Bantalan Kopling Satu Arah

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

Detail produk:

Tempat asal:	Jiangsu, Cina
Nama merek:	SUMA
Nomor model:	MX35

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

Peringkat presisi:	P0	Tipe Segel:	Tertutup
Jenis:	CAM	Kapasitas torsi:	235 nm
Pengindeksan Max:	1200 siklus/menit	Torsi seret:	1.36
Berat:	6,4 kg	Ukuran Bore:	35 mm
Balapan luar:	125 mm	Toleransi yang sesuai:	0,025 mm
Toleransi Hub Bore:	H6 atau H7	Model:	MX35
Metode instalasi:	Tekan Pas	Izin Keyway:	Pas dengan ketat dengan clearance atas
Tekanan pemasangan:	Akhir balapan batin saja
Menyoroti:	MX35 cam clutch bearing 35mm bore , one way clutch bearing 235Nm torque , 35mm bore clutch bearing with warranty

MX35 One Way Roller Clutch Cam Clutch

Product Specifications

Item	MX35
Precision	P0
Type	cam
Bore size (mm)	35
Outer race (mm)	125
Torque Capacity(Nm)	235
Max.Indexing(cycle/min)	1200
Weight (kg)	6.4
Application	Elevator, industrial machine and more

Installation and Usage

Insert the clutch into the hub bore of a pulley, gear, or torque arm and secure with high-tension bolts in the tapped holes.
MX Series clutches require a press fit for indexing applications (do not exceed 0.025 mm).
Adjust the key side to fit the keyway tightly while maintaining clearance between the top of key and keyway.
When mounting on a shaft, apply pressure only to the inner race end - never to the outer race.
For optimal performance, pair with braking and backstopping devices as needed.
Hub bore tolerance should be H6 or H7.
