B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity

B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity

  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
  • B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA
Nomor model: B206
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak
Detil Deskripsi produk
Peringkat presisi: P6 Tipe Segel: Membuka
Jenis: Sprang Ketebalan: 28mm
Kapasitas torsi: 235Nm Pengindeksan Max: 150 siklus/menit
Torsi seret: 0.2ncm Berat: 0,68kg
Bahan: GCR15 Ukuran Bore: 32.766mm
Balapan luar: 62mm Max overrunning: 1800 putaran/menit
Ukuran Keyway: 7x4 Jis tidak memiliki: 6206
Diameter poros: 32.766mm
Menyoroti:

28mm one way clutch bearing

,

one way bearing 235Nm torque

,

B206 one way bearing

One Directional Cam Clutch B206 One Way Freewheel Bearing
The B206 one way bearing is a non-bearing supported sprag type freewheel where the sprags run directly on the user-provided shaft. This design requires separate bearings to support axial and radial loads.
Key Features
  • Type S200(B200) sprag type freewheel design
  • Requires separate bearings for axial and radial load support
  • Available in multiple sizes: S203(B203) through S210(B210)
  • Common applications include backstop and indexing clutch mechanisms
Standard Specifications
Item Specification
Precision P6
Drag Torque 0.2Ncm
Bore size (mm) 32.766
Outer race (mm) 62
Torque Capacity(Nm) 235
Max.Indexing(cycle/min) 150
Weight (kg) 0.68
Application Harvest Machinery, industrial machines
Technical Parameters
Model Torque Capacity (N.m) Drag Torque (N.m) Max.Overrunning (r/min) Max.Indexing (cycle/min) Weight (kg)
B203 39.2 0.1 2400 500 0.23
B204 58.8 0.1 2400 500 0.34
B205 98 0.2 1800 400 0.45
B206 235 0.2 1800 350 0.68
B207 372 0.2 1800 300 0.8
B208 549 0.2 1800 200 0.91
B209 549 0.2 1800 200 0.95
Product Images

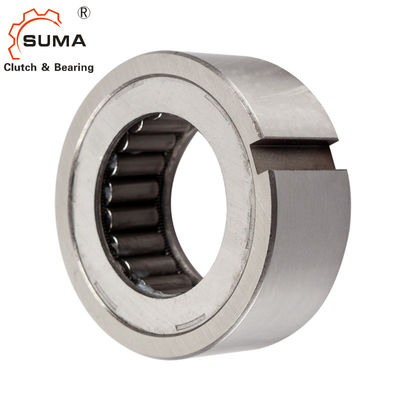

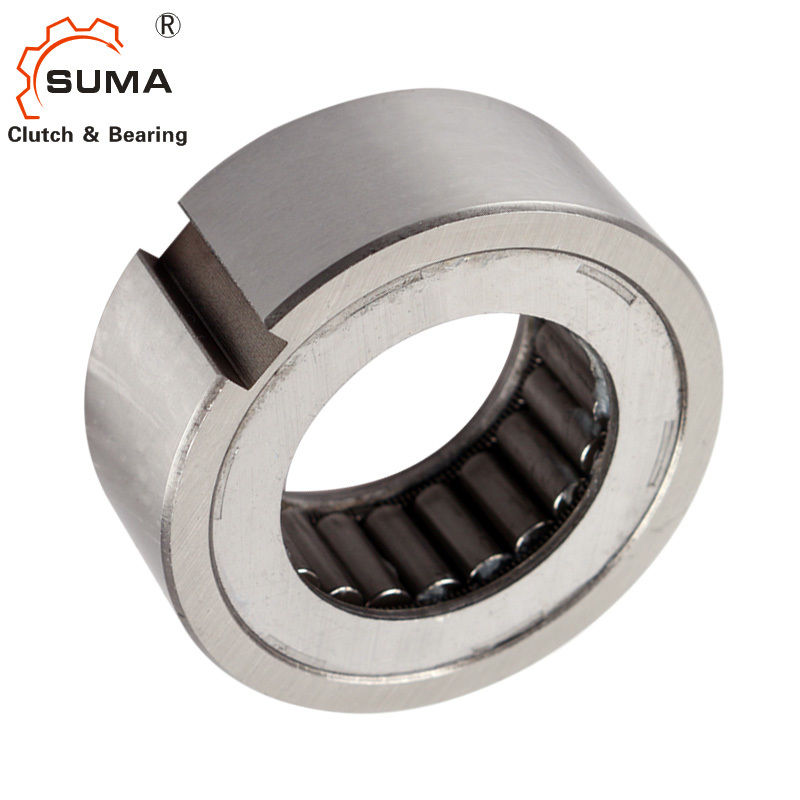

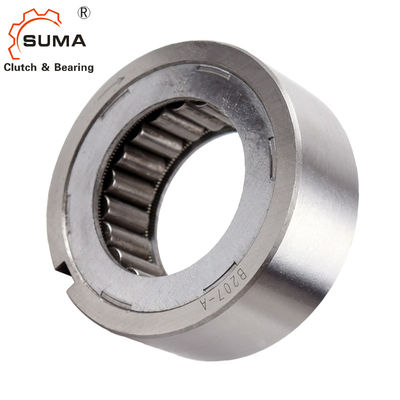

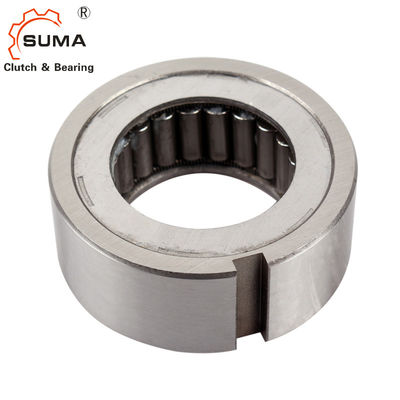

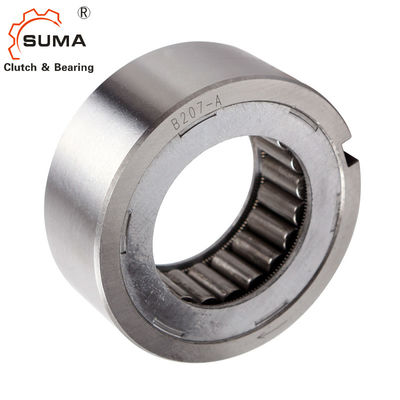

B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 0
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 1
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 2
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 3
Production Process
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 4
Certifications
B206 One Way Bearing 28mm Thickness 235Nm Torque Capacity 5
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each unit in white box + 19×18×9cm box + 29×28×19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?
We highly encourage customers to request samples for quality verification before placing bulk orders.
Can you promise to deliver the goods in time?

Small items: Typically in stock

Medium Items: 10-15 Days production time

Big items: 20-25 Days production time

Delivery Time: 7-10 days after order confirmation

Package Options: Standard wooden box or customized packaging available

Payment Terms: TT, L/C, D/A, D/P, Western Union, Paypal
