GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque

GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque

  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
  • GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA OR OEM
Nomor model: GFR90 F2F3 F3F4
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Kontak
Detil Deskripsi produk
Peringkat presisi: P0, P6 Tipe Segel: Tertutup
Bahan: GCR15 Ukuran Bore: 90mm
Lebar: 158mm Kapasitas torsi: 14500nm
Berat: 47,2kg Diameter luar: 230mm
Kecepatan overrunning: 450 Min-1 Tingkat presisi: P6
Jenis: Seri GFR Dukungan Bantalan: 160 Bantalan Seri
Persyaratan pelumasan: Dilumasi Minyak Hentikan Clearance Bolt: 13% diameter baut
Standar Keyway: DIN 6885.1
Menyoroti:

90mm one way roller bearing

,

one way clutch bearing 14500Nm torque

,

GFR90 roller bearing with warranty

GFR90 F2F3 F3F4 One Way Roller Bearing
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 0
Product Specifications
Item GFR90F2F3 F3F4
Material GCr5
Outer diameter 230 mm
Bore size 90 mm
Width 158 mm
Torque 14500 Nm
Weight 47.2 kg
Overrunning speed 450 min-1
Precision rate P6
Port Shanghai; Ningbo
Delivery time 7-10 days
Product Features

Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160 series bearings. They use the GFR base module.

  • Units must be oil lubricated before use if delivered disassembled
  • Primarily used as backstops
  • F3 cover acts as torque arm with integrated stop bolt (requires 13% radial clearance)
  • F2 and F4 covers close the unit with oil filling/drain/level screws
  • F4 cover requires shaft end plate sealing to prevent oil leakage
  • Covers allow on-site rotation direction selection
  • Available pre-assembled and lubricated for F2F3 combination
Technical Specifications
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 1
Mounting Instructions
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 2

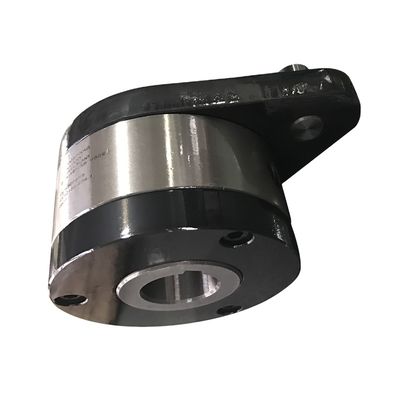

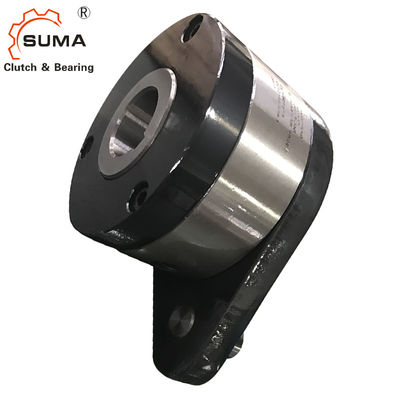

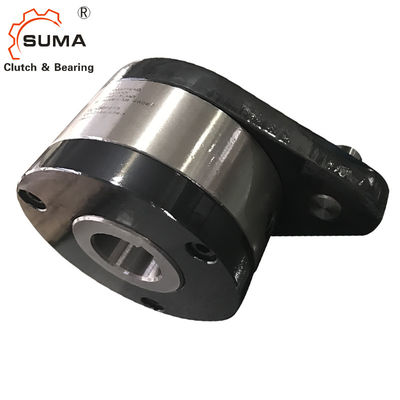

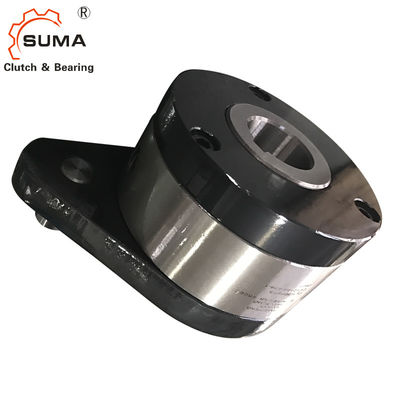

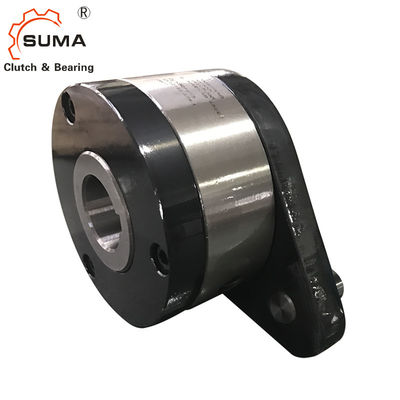

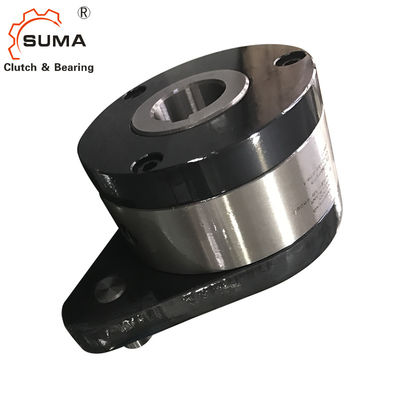

Product Images
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 3 GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 4 GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 5
Important Notes:

1) T max = 2 × T KN

2) Inner race overruns

Keyway to DIN 6885.1 standard

When ordering assembled, specify rotation direction from arrow "A": "R" for clockwise, "L" for counter-clockwise

Certifications
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 6
About Changzhou Suma Precision Machinery Co., Ltd

Specialized manufacturer of cam clutches, one way bearings, backstop clutches, and overrunning clutches with high technology.

GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 7
Our Advantages:
  • Advanced production equipment
  • Strict raw material requirements
  • Complete manufacturing process
  • Consistent quality control
  • Competitive pricing options
Production & Quality Assurance
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 8 GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 9
Packaging & Shipping
GFR90 One Way Roller Bearing 90mm Bore 14500Nm Torque 10
Frequently Asked Questions
Q: Why choose your company?

A: We maintain strict quality control with our own bearing factory, offering competitive pricing for one way clutch bearings.

Q: What is the delivery time?

A: Most bearings are in stock. Small quantities ship within 15 days.

Q: What are your payment terms?

A: We accept L/C, T/T, Western Union, and Paypal.

Q: Can you send samples first?

A: Yes, we can provide samples for quality verification.

Contact us for any additional requirements or questions about our GFR90 F2F3 F3F4 One Way Roller Bearings.
