CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing

CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing

  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
  • CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA
Nomor model: CSK30
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $3.50-3.80
Kontak
Detil Deskripsi produk
Jenis: Sprang Peringkat presisi: P0
Tipe Segel: Tertutup Bahan: GCR15
Diameter dalam: 30mm Diameter luar: 62mm
Ketebalan: 16mm Kapasitas torsi: 138nm
Berat: 0.21g Beban dinamis: 11.7kn
Beban statis: 6.45kn Kecepatan Max: 4200min-1
Torsi seret: 4.4NCM Seri bantalan: 6206
Jenis Sprag: Formchromed
Menyoroti:

30mm sprag clutch bearing

,

sealed one way bearing

,

CSK30 one way clutch bearing

CSK30 One Way Bearing CSK 30 Sprag Clutch Bearing
Product Specifications
Attribute Value
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Type sprag, sprag type
Precision Rating P0
Seals Type sealed
Material Steel, GCr15
Product name csk sprag clutch bearing
Brand SUMA
OEM ACCEPT
Stock rich
Package wooden box, tube, pulley
Port Shanghai;Ningbo
Delivery time 7-10 days
Product Description

The CSK30 One Way Bearing is a sprag type freewheel integrated into a 62 series ball bearing (except size 8 and 40). This bearing comes supported, delivered grease lubricated and protected against dust particles larger than 0.3mm.

Key Features
  • Sprag type one-way clutch bearing
  • Made from high-quality GCr15 steel
  • Formchromed sprags for increased overrunning lifetime
  • Sealed design for protection against contaminants
  • Precision rated P0 for reliable performance
Technical Parameters
Product name CSK30 one way sprag bearing
Model CSK30
Material GCr15
Inner diameter 30mm
Outer diameter 62mm
Thickness 16mm
Torque capacity 138Nm
Weight 0.21g
Package Carton Box / Wooden box
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order
Performance Data
Type Size Bearing series Bearing loads Weight Drag torque
CSK(KK) 30 6206 138 Nm 0.21 kg 4.4 Ncm

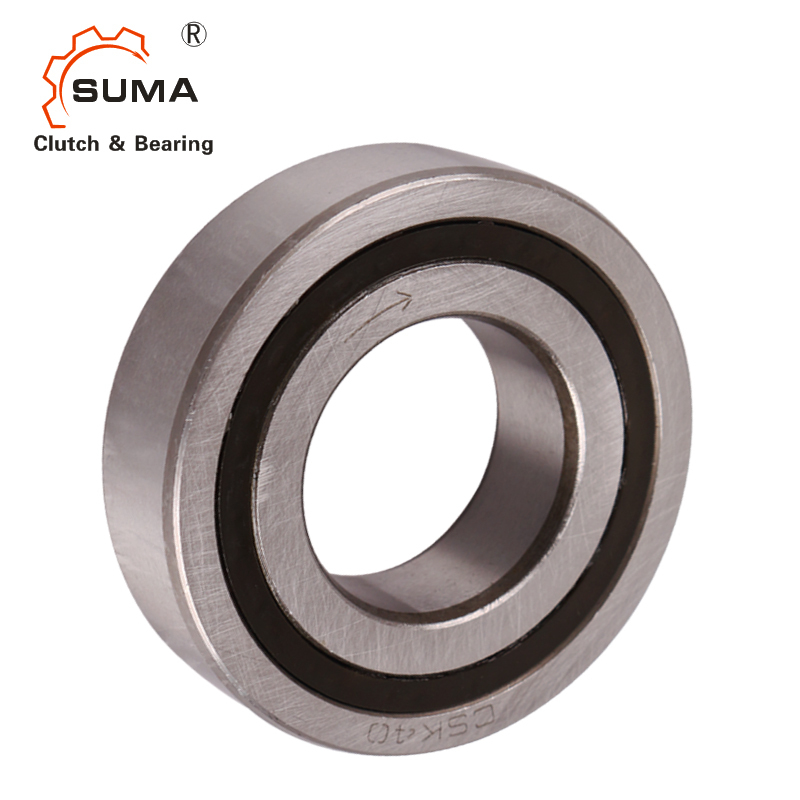

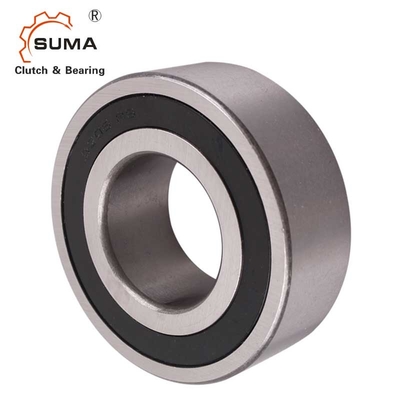

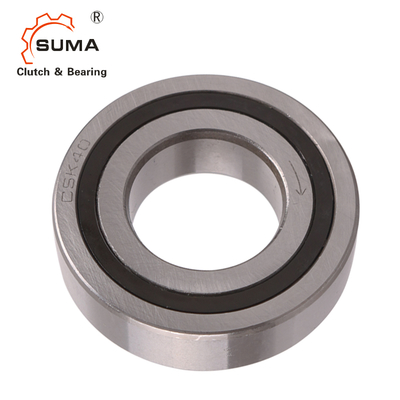

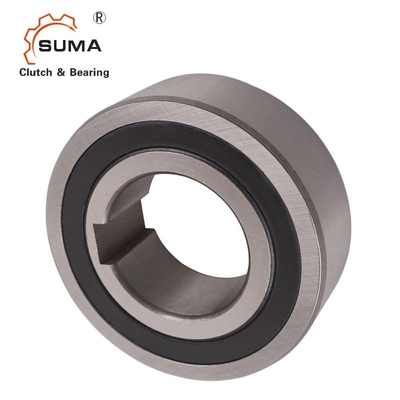

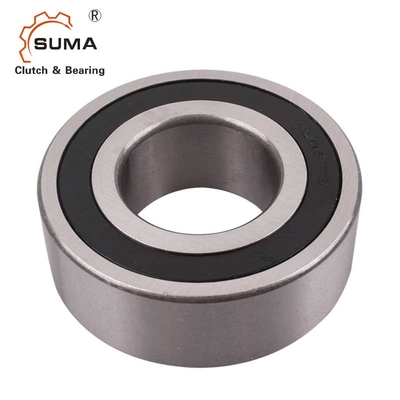

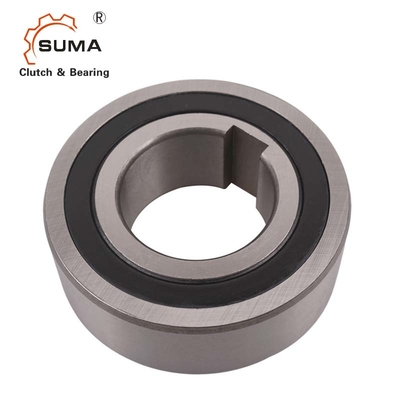

Product Images
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 0
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 1
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 2
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 3
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 4
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 5
Manufacturer Information

Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a specialized manufacturer producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.

We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.

CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 6
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 7
CSK30 Sprag Clutch Bearing 30mm ID Sealed One Way Bearing 8
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get the samples from you?
It is highly encouraged to ask for samples for quality check.
Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days

Label:

Sprag Clutch One Way Bearing,

Sprag One Way Clutch Bearing,

Freewheel One Way Sprag Clutch
