FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: SUMA or OEM
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: US$1,000-1,100
Kontak
Detil Deskripsi produk
Kecepatan balapan batin: 1350 Min-1 Kecepatan Balap Luar: 500 menit-1
Torsi: 24408 nm Berat: 71KG
Jenis Pelumasan: Gemuk Jenis Sprag: Sprag tinggi
Dukungan Bantalan: dua bantalan bola Jenis segel: Segel Labirin
Kisaran Ukuran Bore: 600> 50 mm, 700> 75 mm Lubang pemasangan: 6 lubang pada 60 ° + 2 ekstra
Torsi maks: 2 × T KN Jenis desain: Formsprag USA
Opsi Pelumasan: Minyak atau minyak Ketersediaan Bore: metrik atau kekaisaran
Desain Kecepatan Tinggi: Model HPI
Menyoroti:

HPI 900 sprag type clutch

,

conveyor hold back clutch

,

one way clutch bearing

FSO900 / HPI 900 Hold Back Clutch with Sprag Type Freewheels for Conveyors and Reducers
Product Specifications
Attribute Value
Warranty 1 YEAR
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Customized support OEM
Inner race overrunning speed (min-1) 1350
Outer race overrunning speed (min-1) 500
Torque (N.m) 24408
Weight (kg) 71
Lubricated grease
OEM Accept
Delivery 10-15 days
Product name FSO900 / HPI 900
Product Overview

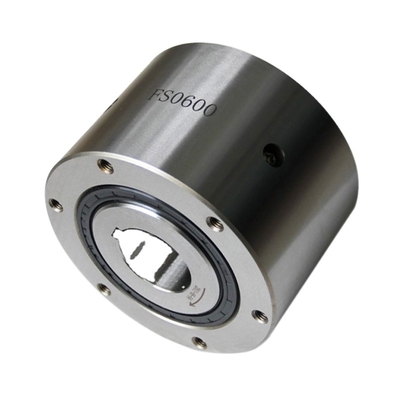

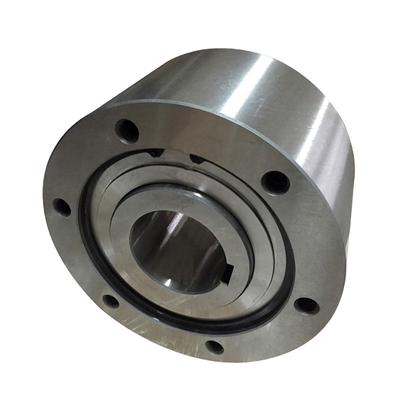

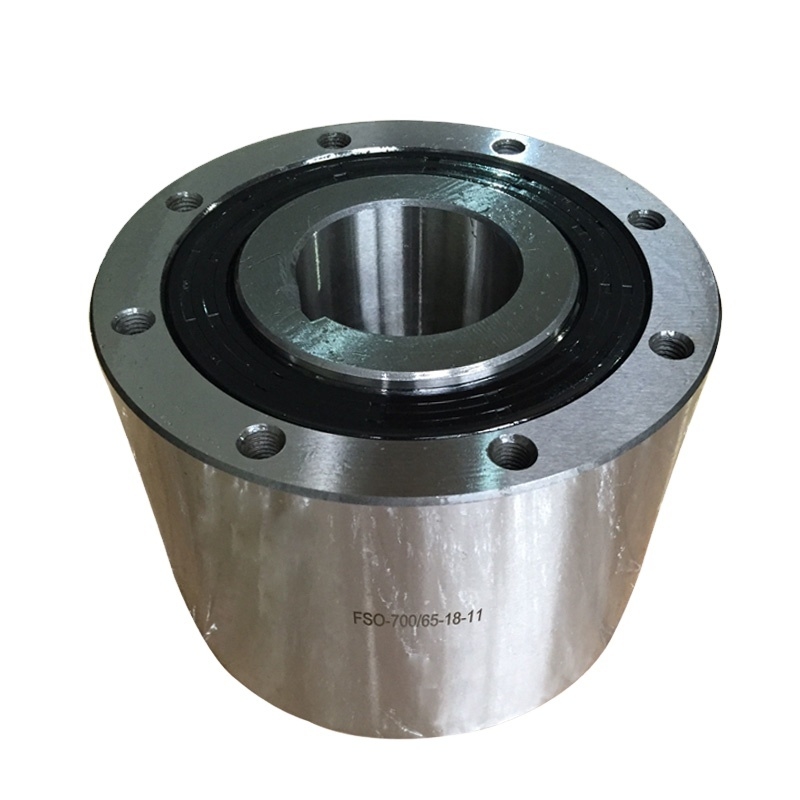

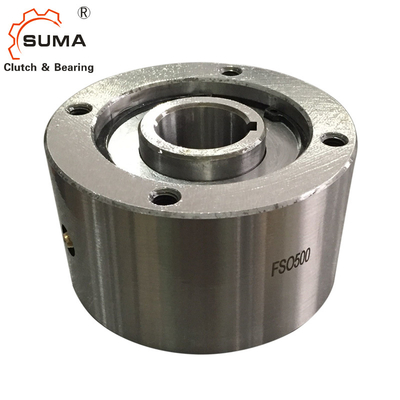

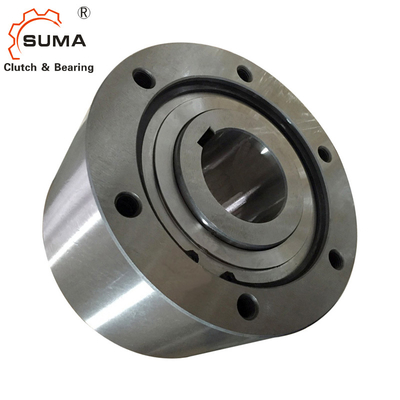

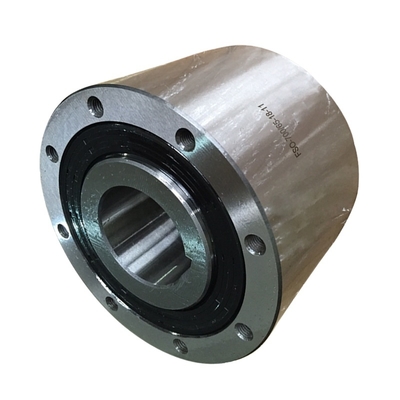

The FSO900 is a one-way hold back clutch with sprag type freewheels, designed for conveyor systems and reducers. This self-contained, sealed unit features bearing support with two ball bearings for reliable operation.
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 0 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 1
Key Features
  • Available in FSO, FS, and HPI 750 to 1027 series
  • Sprag type freewheels with self-contained, sealed design
  • Bearing supported with two ball bearings
  • Delivered oil or grease lubricated according to type
  • Formsprag USA design with tall sprags and multi-radius active surfaces
  • Compensates for eccentricity due to bearing wear
  • FS and HPI types are oil lubricated with standard shaft lip seals
  • FSO type is grease lubricated with special grease seals
  • HPI type designed for high speed indexing applications
  • Available in standard metric bore diameters with custom sizes available
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 2 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 3
Technical Notes
1) T max = 2 × T KN
2) Inner race/outer race
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180°
Mounting Example
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 4 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 5 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 6 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 7
Packaging
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 8 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 9
