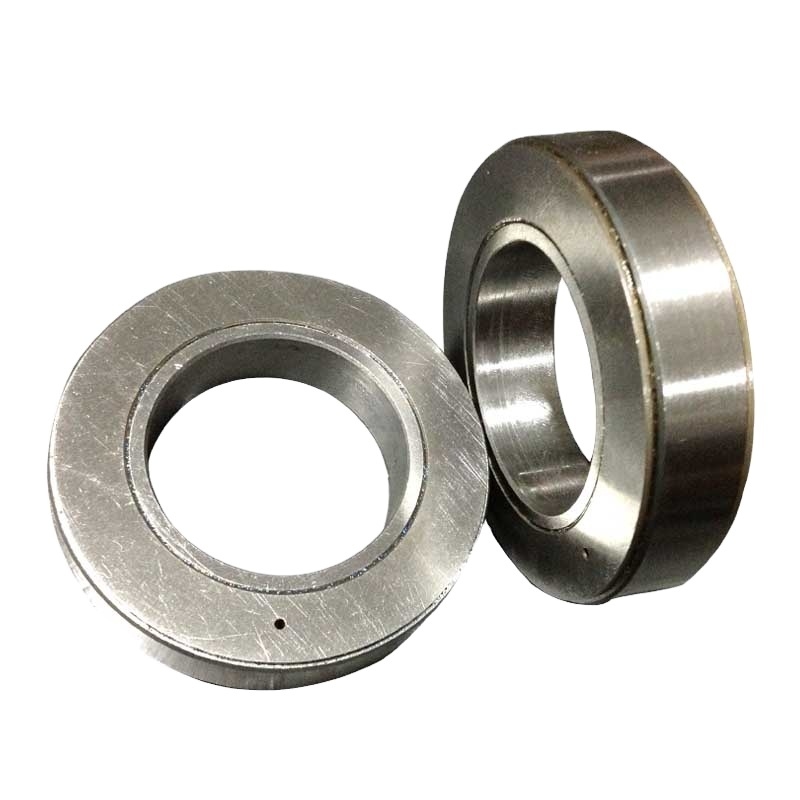

Name: ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BERTANYA
Price: 567.60 USD
Availability: InStock

Rumah Produk Bantalan Kopling Satu Arah

ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

Detail produk:

Tempat asal:	Jiangsu, Cina
Nomor model:	BERTANYA

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

Peringkat presisi:	P0	Jumlah baris:	Baris tunggal
Bahan:	GCR15	Diameter dalam:	40-60MM
Diameter luar:	68-95 mm	Lebar:	15-18mm
Berat:	0,25-0,5 kg	Struktur:	Groove yang dalam
Jenis:	Bola	Ukuran Bore:	40 - 60 mm
Tipe Segel:	Tertutup	Beban dinamis:	16-25.3 kN
Beban statis:	20.6-35.1 KN	Kecepatan Max:	1800-3500 min-1
Torsi seret:	15-25 NCM
Menyoroti:	40mm one way clutch bearing sealed , 60mm one way clutch bearing , sealed one way clutch bearing

China Bearing Manufacturer One Way Clutch Indexing Clutch ASK

Product Attributes

Attribute	Value
Applicable Industries	Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Precision Rating	P0
Number of Row	Single row
Material	Gcr15
Inner diameter	40-60 mm
Outer diameter	68-95 mm
Width	15-18 mm
Weight	0.25-0.5 kg
Package	Cartons Paper Box
Port	Shanghai; Ningbo
Delivery time	Prompt
Application	Machinery
Structure	Deep Groove
Type	BALL
Bore Size	40 - 60 mm
Seals Type	Sealed

Product Description

Product Model: ASK
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated.

Nominal outside dimensions are the same as a 60...Series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60...Bearing location: Shaft tolerance should be h6 or j6. The Outer race should be pressed into a rigid housing to K6 tolerance.

Radial bearing load capacities are given in the table. Type ASK freewheels cannot accept axial loading. In cases of such loads, thrust bearings must be provided.
