Bantalan Rol Jarum Satu Arah
>
|
| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | 1WC0809 EWC0809 |

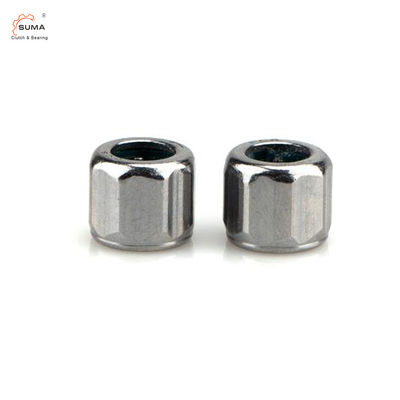

1WC0809 EWC0809 Fishing Reel One Way Needle Roller Bearing
Kehidupan Penggunaan: Lebih dari Ribuan kali (kapasitas torsi tertahankan)
Bahan: ST14 Gelar hingga JGMA 6
Aplikasi: Gulungan Pancing, Ekstraktor Jus, Printer, Mesin Fotokopi, dll
Perkataan
Ras luar: ST14 / Stainless Steel 304
Jarum: Baja tahan karat 304
Kandang: Nilon
Data Teknis bantalan rol jarum satu arah EWC
| Barang | EWC (Pegas Plastik) | 1WC (Pegas Logam) | |
| Tipe Berat | Jenis Cahaya | Tipe Berat | |
| EWC...C | EWC...A | 1 WC | |
| Memuat | Beban berat | Beban Ringan | Beban berat |
| Suhu kerja | 10-700C | 10-900C | |
Dimensi dan Kapasitas
|
Poros Dia. MM |
Model | Bobot | DIMENSI | Kapasitas Torsi | |||
| g | Dia dalam.FW |
Dia luar. D1-D2 |
Tinggi B |
(Nm) | (kgf.cm) | ||
| 4 | EWC0406 | 1.2 | 4 | 8-8.4 | 6 | 0,08 | 0.8 |
| 1WC0406 | 1.5 | 4 | 8-8.4 | 6 | 0.15 | 1.5 | |
| 6 | EWC0606 | 2 | 6 | 8-8.4 | 6 | 0.19 | 1.9 |
| 1WC0606 | 2.2 | 6 | 8-8.4 | 6 | 0.33 | 3.5 | |
| EWC0608 | 2.2 | 6 | 10-10,4 | 8 | 0,25 | 2.5 | |
| 1WC0608 | 2.5 | 6 | 10-10,4 | 8 | 0,45 | 4,5 | |
| 1WC0612 | 3 | 6 | 10-10,4 | 12 | 0.9 | 9.5 | |
| 8 | EWC088.5 | 2.5 | 8 | 12-12,4 | 8.5 | 0,5 | 5.5 |
| EWC0809 | 2.5 | 8 | 12-12,4 | 9 | 0,88 | 9 | |
| EWC0812 | 5.5 | 8 | 14.2-15 | 12 | 1.18 | 12 | |
| 1WC0812 | 6 | 8 | 14.2-15 | 12 | 1.96 | 20 | |
| 1WC0815 | 8 | 8 | 14.2-15 | 15 | 2.65 | 27 | |
| 10 | EWC1007 | 7 | 10 | 16-17 | 7 | 1.2 | 10 |
| EWC1008 | 8 | 10 | 16-17 | 8 | 1.85 | 19 | |
| 1WC1009 | 8.5 | 10 | 14-14.4 | 9 | 2.25 | 23 | |
| EWC1010 | 8 | 10 | 16-17 | 10 | 1.18 | 12 | |
| 1WC1010 | 9 | 10 | 16-17 | 10 | 1.98 | 20 | |
| EWC1012 | 10 | 10 | 16-17 | 12 | 1.37 | 14 | |
| 1WC1012 | 11 | 10 | 16-17 | 12 | 2.35 | 24 | |
| 12 | EWC1209 | 10 | 12 | 18-19 | 9 | 3.04 | 31 |
| EWC1216 | 12 | 12 | 18-19 | 16 | 6.29 | 64 | |
| 1WC1216 | 13 | 12 | 18-19 | 16 | 7.3 | 75 | |

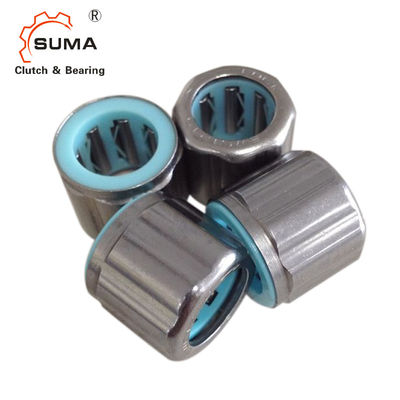

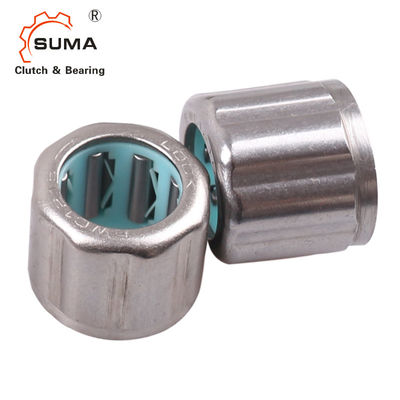

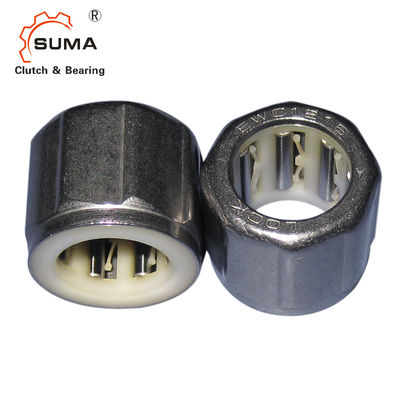

Foto-foto
