Pengikut Kamera Tipe Stud
>
|
| Tempat asal | Cina |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CCFH 3 1/4 S |

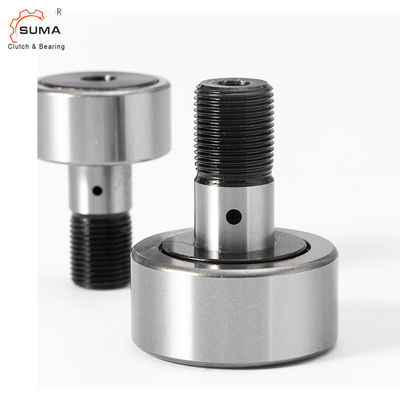

CCFH 3 1/4 S Heavy Duty Stud Type Cam Follower Bearing untuk Tanaman Otomatis
Fitur
Fungsi khas dari pengikut cam adalah untuk memberikan dukungan anti-gesekan dari gerakan linier atau mengikuti permukaan cam.
SUMA Stud Cam Follower dirancang untuk menahan goncangan intermiten, pemuatan, dan persyaratan presisi yang terkait dengan aplikasi ini.
Aplikasi :
| Makanan dan minuman | Peralatan pengemasan | Satuan penanganan material |
| Pabrik Otomatis | Pengeboran Minyak | Pabrik baja |
| Tekstil / Percetakan | Peralatan otomasi | Peralatan mesin |
Data Teknis
Dimensi dan Kapasitas
| TERSEGEL BRG. TIDAK |
TERSEGEL BRG. TIDAK |
ROL DIA (RD) |
ROL LEBAR (W) |
STUD DIA (SD) |
STUD PANJANG (SL) |
MIN. BENANG PANJANG (TL) |
BAGUS BENANG |
LUBANG MINYAK | PERUMAHAN DIA +.0002 -.0003 |
RRCOM. CLAMPING TORSI LBS. DI DALAM |
MAKS STATIS KAPASITAS LBS. |
DASAR DYN. PERINGKAT LBS. |
|
| LUBANG TENGAH (HC) |
LUBANG DIA(HD) |
||||||||||||
| CFH-1/2 | CFH-1/2-S | 0,500 | 0,375 | 0,250 | 5/8 | 1/4 | 1/4-28 | .2503 | 35 | 1580 | 680 | ||
| CFH-9/16 | CFH-9/16-S | 0,5625 | 0,375 | 0,250 | 5/8 | 1/4 | 1/4-28 | .2503 | 35 | 1580 | 680 | ||
| CFH-5/8 | CFH-5/8-S | 0,625 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/16-24 | .3128 | 90 | 2480 | 955 | ||
| CFH-11/16 | CFH-11/16-S | 0,6875 | 0,4375 | 0,3125 | 3/4 | 5/16 | 5/16-24 | .3128 | 90 | 2480 | 955 | ||
| CFH-3/4 | CFH-3/4-S | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
| CFH-7/8 | CFH-7/8-S | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | .4378 | 250 | 4130 | 1660 |
| CFH-1 | CFH-1-S | 1.000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
| CFH-1 1/8 | CFH-1 1/8-S | 1.1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | .6253 | 650 | 6120 | 2225 |
| CFH-1 1/4 | CFH-1 1/4-S | 1.250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
| CFH-1 3/8 | CFH-1 3/8-S | 1.375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | .7503 | 1250 | 8500 | 3930 |
| CFH-1 1/2 | CFH-1 1/2-S | 1.500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
| CFH-1 5/8 | CFH-1 5/8-S | 1.625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | .8753 | 1500 | 11280 | 4840 |
| CFH-1 3/4 | CFH-1 3/4-S | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1,0003 | 2250 | 15840 | 6385 |
| CFH-1 7/8 | CFH-1 7/8-S | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 1,0003 | 2250 | 15840 | 6385 |
| CFH-2 | CFH-2-S | 2.000 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1.1253 | 2800 | 21140 | 8090 |
| CFH-2 1/4 | CFH-2 1/4-S | 2.250 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 1.1253 | 2800 | 21140 | 8090 |
| CFH-2 1/2 | CFH-2 1/2-S | 2.500 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1.2503 | 3450 | 32900 | 11720 |
| CFH-2 3/4 | CFH-2 3/4-S | 2.750 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 1.2503 | 3450 | 32900 | 11720 |
| CFH-3 | CFH-3-S | 3.000 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1,5003 | 5000 | 49820 | 15720 |
| CFH-3 1/4 | CFH-3 1/4-S | 3.250 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1,5003 | 5000 | 49820 | 15720 |
| CFH-3 1/2 | CFH-3 1/2-S | 3.500 | 1.750 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 16/11 | 1/8 | 1,7503 | 5000 | 63250 | 22800 |
| CFH-4 | CFH-4-S | 4.000 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 2.0003 | 5000 | 89540 | 29985 |
| CFH-5-S | 5.000 | 2.750 | 2.500 | 5 1/16 | 2 9/16 | 2 1/2-12 | 7/8 | 3/16 | 2.5003 | 5000 | 135900 | 46575 | |
| CFH-6-S | 6.000 | 3.250 | 3.000 | 6 | 3 | 3-12 | 1 | 3/16 | 3.0003 | 5000 | 160900 | 60000 | |
| CFH-7-S | 7.000 | 3.750 | 3.500 | 7 11/16 | 4 1/8 | 3 1/2-4 | 1 1/4 | 3/16 | 3.5003 | 5000 | 213860 | 75380 | |

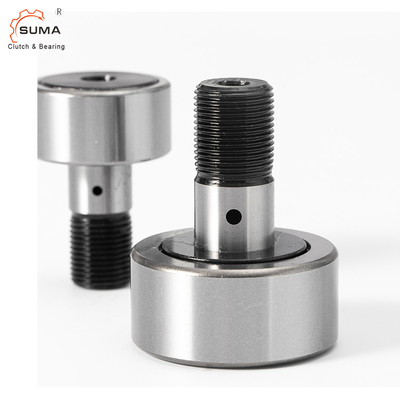

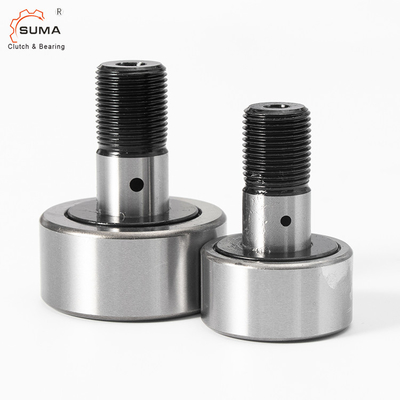

Foto-foto
