| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CF-1-3/4-SB |

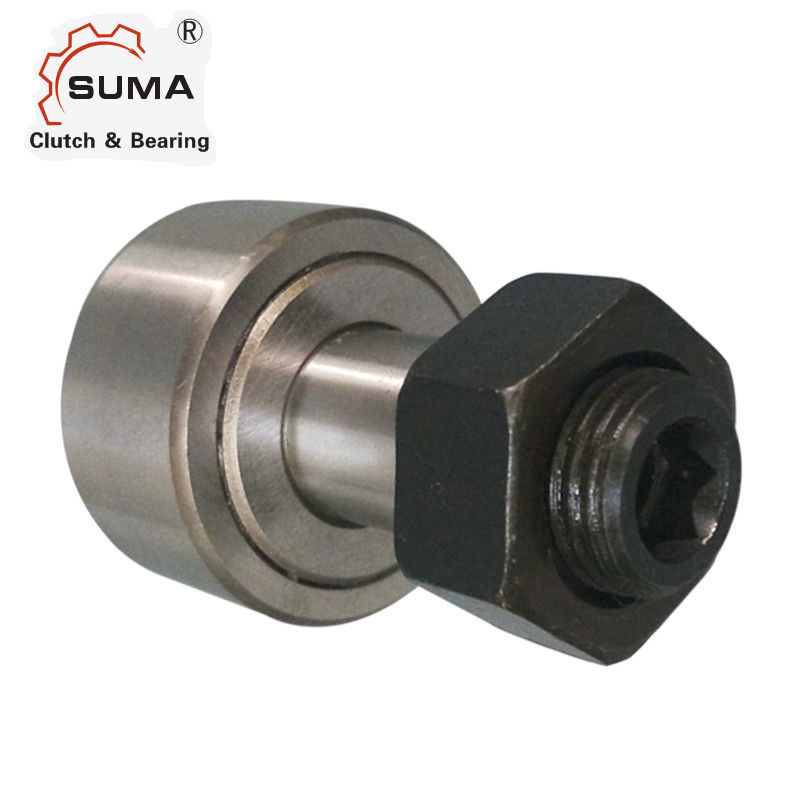

CF-1-3/4-SB Stud Type Cylindrical Roller Follower Cam
Fitur
lingkar luar berdinding tebal mesin
rol jarum atau set rol silinder
panduan kandang atau rol jarum pelengkap lengkap
cincin bagian dalam atau baut dan segel
Data Teknis
| Buka segel No. |
disegel no. |
Roller Dia.(RD) |
Lebar Rol (W) |
Pejantan Dia. (SD) |
pejantan panjang (TL) |
Panjang Min Ketiga (TL) |
Benang Halus |
Ukuran Pemasangan Lub (F) |
Toque Lbs |
Kapasitas Statis Lbs |
Kapasitas Dinamis Lbs |
| CF-1/2-N | CF-1/2-NS | 0,5 | 0,344 | 0.19 | 1/2 | 1/4 | 10-32 | 1/8 | 15 | 720 | 620 |
| CF-1/2 | CF-1/2-S | 0,5 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-9/16 | CF-9/16-S | 0,5625 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 | 790 | 680 |
| CF-5/8-N | CF-5/8-NS | 0,625 | 0,406 | 0,25 | 5/8 | 16/5 | 1/4-28 | 1/8 | 35 | 1065 | 930 |
| CF-5/8 | CF-5/8-S | 0,625 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 1/8 | 35 | 1215 | 955 |
| CF-11/16 | CF-11/16-S | 0,6875 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 1/8 | 95 | 1215 | 955 |
| CF-3/4 | CF-3/4-S | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8 | CF-7/8-S | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 | 2065 | 1660 |
| CF-1 | CF-1-S | 1 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8 | CF-1 1/8-S | 1.125 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 350 | 3060 | 2225 |
| CF-1 1/4 | CF-1 1/4-S | 1.25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8 | CF-1 3/8-S | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 | 4250 | 3930 |
| CF-1 1/2 | CF-1 1/2-S | 1.5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8 | CF-1 5/8-S | 1.625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| CF-1 3/4 | CF-1 3/4-S | 1.75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8 | CF-1 7/8-S | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| CF-2 | CF-2-S | 2 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4 | CF-2 1/4-S | 2.25 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| CF-2 1/2 | CF-2 1/2-S | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4 | CF-2 3/4-S | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| CF-3 | CF-3-S | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4 | CF-3 1/4-S | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| CF-3 1/2 | CF-3 1/2-S | 3.5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| CF-4 | CF-4-S | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 29985 |
| CF-5-S | 5 | 2.75 | 2 | 5 1/16 | 2 9/16 | 2-12 | 1/4N.PT | 5000 | 67950 | 46575 | |
| CF-6-S | 6 | 3.25 | 2.5 | 6 | 3 | 2 1/2-12 | 1/4N.PT | 5000 | 80450 | 60000 | |
| CF-7-S | 7 | 3.75 | 3 | 7 11/16 | 4 1/8 | 3-12 | 1/4N.PT | 5000 | 106930 | 75380 | |
| CF-8-S | 8 | 4.25 | 3.25 | 8 1/2 | 4 1/4 | 3 1/4-4 | 1/4N.PT | 5000 | 144100 | 92200 | |
| CF-9-S | 9 | 4.75 | 3.75 | 9 1/2 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 | 183430 | 113260 | |
| CF-10-S | 10 | 5.25 | 4.25 | 10 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 | 215565 | 131545 |
Foto-foto
