| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CF-1/2-N-SB |

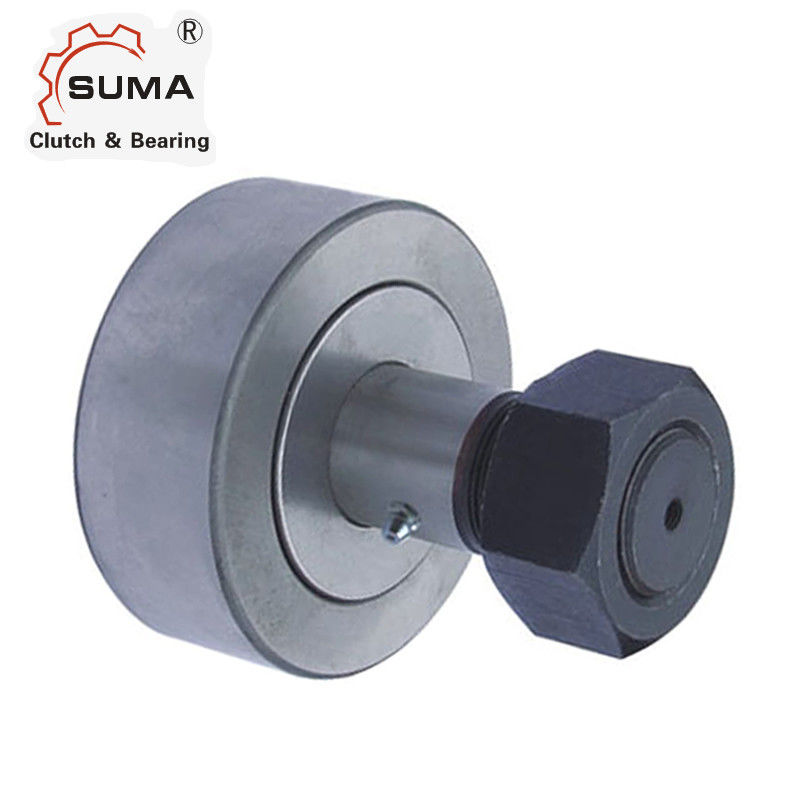

CF-1/2-NS Sealed GCr15 Stud Type Track Roller
Fitur
Pengikut cam gaya stud biasanya memiliki stud berukuran standar, tetapi stud berat tersedia untuk meningkatkan kapasitas beban statis.
Untuk aplikasi tugas berat, desain roller dapat digunakan.Ini menggunakan dua baris rol dengan diameter lebih besar daripada yang digunakan dalam pengikut cam rol jarum untuk meningkatkan kapasitas beban dinamis dan memberikan beberapa kemampuan dorong.Desain ini dapat mendukung kecepatan yang lebih tinggi daripada desain pelengkap penuh.
Data Teknis
| Nama Produk | CF-1/2-NS Stud Type Cam Follower Bearing |
| Model | CF-1/2-NS |
| Bahan | GCr15 |
| Kemasan | Kotak karton / kotak kayu, katrol, dll |
| Syarat pembayaran | TT.L/C, D/A, D/P, Western Union |
| waktu pengiriman | 2-4 hari untuk sampel, 7 hari untuk pesanan besar |
Dimensi dan Kapasitas
| Buka segel No. | disegel no. | Roller Dia.(RD) | Lebar Rol (W) |
Pejantan Dia. (SD) |
pejantan panjang (TL) |
Panjang Min Ketiga (TL) | Benang Halus | Ukuran Pemasangan Lub (F) |
Toque Lbs |
| CF-1/2-N | CF-1/2-NS | 0,5 | 0,344 | 0.19 | 1/2 | 1/4 | 10-32 | 1/8 | 15 |
| CF-1/2 | CF-1/2-S | 0,5 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 |
| CF-9/16 | CF-9/16-S | 0,5625 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 1/8 | 15 |
| CF-5/8-N | CF-5/8-NS | 0,625 | 0,406 | 0,25 | 5/8 | 16/5 | 1/4-28 | 1/8 | 35 |
| CF-5/8 | CF-5/8-S | 0,625 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 1/8 | 35 |
| CF-11/16 | CF-11/16-S | 0,6875 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 1/8 | 95 |
| CF-3/4 | CF-3/4-S | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 |
| CF-7/8 | CF-7/8-S | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 |
| CF-1 | CF-1-S | 1 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 250 |
| CF-1 1/8 | CF-1 1/8-S | 1.125 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 350 |
| CF-1 1/4 | CF-1 1/4-S | 1.25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 |
| CF-1 3/8 | CF-1 3/8-S | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 |
| CF-1 1/2 | CF-1 1/2-S | 1.5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 |
| CF-1 5/8 | CF-1 5/8-S | 1.625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 |
| CF-1 3/4 | CF-1 3/4-S | 1.75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 |
| CF-1 7/8 | CF-1 7/8-S | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 |
| CF-2 | CF-2-S | 2 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 |
| CF-2 1/4 | CF-2 1/4-S | 2.25 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 |
| CF-2 1/2 | CF-2 1/2-S | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 |
| CF-2 3/4 | CF-2 3/4-S | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 |
| CF-3 | CF-3-S | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 |
| CF-3 1/4 | CF-3 1/4-S | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 |
| CF-3 1/2 | CF-3 1/2-S | 3.5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 |
| CF-4 | CF-4-S | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 |
| CF-5-S | 5 | 2.75 | 2 | 5 1/16 | 2 9/16 | 2-12 | 1/4N.PT | 5000 | |
| CF-6-S | 6 | 3.25 | 2.5 | 6 | 3 | 2 1/2-12 | 1/4N.PT | 5000 | |
| CF-7-S | 7 | 3.75 | 3 | 7 11/16 | 4 1/8 | 3-12 | 1/4N.PT | 5000 | |
| CF-8-S | 8 | 4.25 | 3.25 | 8 1/2 | 4 1/4 | 3 1/4-4 | 1/4N.PT | 5000 | |
| CF-9-S | 9 | 4.75 | 3.75 | 9 1/2 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 | |
| CF-10-S | 10 | 5.25 | 4.25 | 10 | 4 3/4 | 3 1/2-4 | 1/4N.PT | 5000 |
