Pengikut Kamera Tipe Stud
>
|
| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | MCF MCF...S Series |

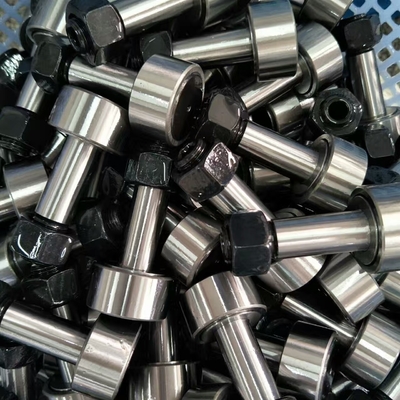

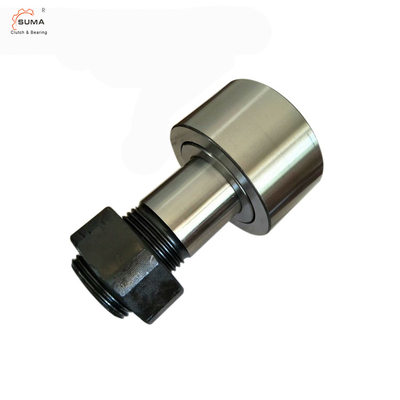

MCF MCF...S Series Pelengkap Penuh Pengikut Cam Roller Jarum
Fitur dariPengikut Cam Roller Jarum
| SERI | FITUR KONSTRUKSI |
|
MCF MCFE MCF-X MCF-B, MCF-BX MCF-S, MCF-SBX MCFR MCFRE MCFR-X MCFR-B, MCFR-BX MCFR-S, MCFR-SBX MCFD MCFDE MCFD-X |
Pelengkap lengkap rol jarum Dengan kerah eksentrik Dengan diameter luar silinder Dengan lubang heksagonal Dengan segel Rol jarum yang dikurung Dengan kerah eksentrik Dengan diameter luar silinder Dengan lubang heksagonal Dengan segel Rol silinder pelengkap lengkap Dengan kerah eksentrik Dengan diameter luar silinder
|
Aplikasi dariPengikut Cam Roller Jarum
|
tidak tersegel BRG.TIDAK. (1) |
SEGEL BRG.TIDAK. (1) |
ROL DIA.RD NOM. (2) |
ROL LEBAR W +0,00 -0,12 |
PELAJARAN DIA. SD NOM.(3) |
STUD L'GTH. NOMOR SL. |
KESELURUHAN PANJANG L NOM. |
PIRING TERAKHIR EKSTENSI NOM. |
BENANG |
BENANG PANJANG TL MIN. |
LUBANG MINYAK |
|
| (HC) NOM. | (HD) NO. | ||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| MCFR-13 | MCFR-13-S | 13 | 9 | 5 | 13 | 23 | 0.6 | M5x0.8 | 7.5 | - | - |
|
MCFR-16 MCF-16 |
MCFR-16-S MCF-16-S | 16 | 11 | 6 | 16 | 28 | 0.6 | M6x1 | 9 | - | - |
|
MCFR-19 MCF-19 |
MCFR-19-S MCF-19-S | 19 | 11 | 8 | 20 | 32 | 0.6 | M8x1.25 | 11 | - | - |
|
MCFR-22 MCF-22 |
MCFR-22-S MCF-22-S | 22 | 12 | 10 | 23 | 36 | 0.6 | M10x1 | 12 | - | - |
|
MCFR-22A MCF-22A |
MCFR-22A-S MCF-22A-S | 22 | 12 | 10 | 23 | 36 | 0.6 | M10x1.25 | 13 | - | - |
|
MCFR-26 MCF-26 |
MCFR-26-S MCF-26-S | 26 | 12 | 10 | 23 | 36 | 0.6 | M10x1 | 12 | - | - |
|
MCFR-26A MCF-26A |
MCFR-26A-S MCF-26A-S | 26 | 12 | 10 | 23 | 36 | 0.6 | M10x1.25 | 13 | - | - |
|
MCFR-30 MCF-30 |
MCFR-30-S MCF-30-S | 30 | 14 | 12 | 25 | 40 | 0.6 | M12x1.5 | 14 | 6 | 3 |
|
MCFR-32 MCF-32 |
MCFR-32-S MCF-32-S | 32 | 14 | 12 | 25 | 40 | 0.6 | M12x1.5 | 14 | 6 | 3 |
|
MCFR-35 MCF-35 |
MCFR-35-S MCF-35-S | 35 | 18 | 16 | 32.5 | 52 | 0.8 | M16x1.5 | 18 | 8 | 3 |
|
MCFR-40 MCF-40 |
MCFR-40-S MCF-40-S | 40 | 20 | 18 | 36,5 | 58 | 0.8 | M18x1.5 | 19 | 8 | 3 |
|
MCFR-40A MCF-40A |
MCFR-40A-S MCF-40A-S | 40 | 20 | 18 | 36,5 | 58 | 0.8 | M18x1.5 | 20 | 10 | 3 |
|
MCFR-47 MCF-47 |
MCFR-47-S MCF-47-S | 47 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 21 | 9 | 4 |
|
MCFR-47A MCF-47A |
MCFR-47A-S MCF-47A-S | 47 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 22 | 12 | 4 |
|
MCFR-52 MCF-52 |
MCFR-52-S MCF-52-S | 52 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 21 | 9 | 4 |
|
MCFR-52A MCF-52A |
MCFR-52A-S MCF-52A-S | 52 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 22 | 12 | 4 |
|
MCFR-62 MCF-62 |
MCFR-62-S MCF-62-S | 62 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 11 | 4 |
|
MCFR-62A MCF-62A |
MCFR-62A-S MCF-62A-S | 62 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 12 | 4 |
|
MCFR-72 MCF-72 |
MCFR-72-S MCF-72-S | 72 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 11 | 4 |
|
MCFR-72A MCF-72A |
MCFR-72A-S MCF-72A-S | 72 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 12 | 4 |
|
MCFR-80 MCF-80 |
MCFR-80-S MCF-80-S | 80 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
|
MCFR-85 MCF-85 |
MCFR-85-S MCF-85-S | 85 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
|
MCFR-90 MCF-90 |
MCFR-90-S MCF-90-S | 90 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
