| Tempat asal | CHANGZHOU CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | BA55R |

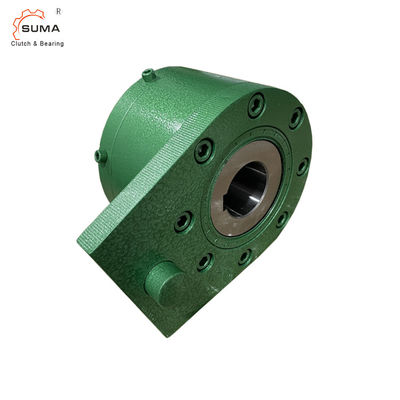

BA55R Lengkap Freewheel Backstop Clutch Bantalan Rol Satu Arah
Fitur :
dengan lengan tuas
dengan rol
Freewheels Lengkap BA … R dan BC … R dengan lengan tuas disegel roller freewheels dengan bantalan bola.Freewheels BA … R memiliki penutup ujung dan dipasang ke ujung poros.Pengisian oli dilakukan setelah freewheel terpasang hingga ujung poros.Freewheels BC … R disuplai berisi oli dan disusun melalui poros atau ujung poros.
Untuk aplikasi dengan operasi freewheeling kecepatan rendah hingga sedang.Torsi nominal hingga 57.500 Nm.Lubang hingga 150 mm.
Parameter Teknis:
| Ukuran Freewheel | Jenis |
Nominal torsi M N Nm |
Maks.kecepatan Roda bebas cincin bagian dalam min-1 |
Bosan Standar maks.mm mm |
A mm |
C mm |
D mm |
E mm |
H mm |
K mm |
L mm |
N mm |
HAI mm |
P mm |
Q mm |
R mm |
S untuk Baut |
Bobot kg |
||
| BA12 | SM12 | R | 150 | 1 750 | 15 | 15 | 71 | 50 | 71 | 8 | 53 | 4,5 | 68 | 9 | 91 | 11,5 | 42 | 45 | M 6 | 2 |
| BA15 | SM15 | R | 230 | 1 650 | 20 | 20 | 81 | 60 | 81 | 8 | 62 | 4,5 | 70 | 9 | 93 | 13,5 | 50 | 50 | M 6 | 3 |
| BA18 | SM18 | R | 340 | 1 550 | 25 | 25 | 96 | 70 | 96 | 8 | 73 | 4,5 | 70 | 9 | 96 | 15,5 | 60 | 60 | M 10 | 4 |
| BA20 | SM20 | R | 420 | 1 450 | 30 | 30 | 110 | 90 | 106 | 8 | 80 | 2,5 | 77 | 11 | 104 | 19,5 | 65 | 70 | M 10 | 5 |
| BA25 | SM25 | R | 800 | 1 250 | 40 | 40 | 126 | 100 | 126 | 8 | 90 | 2,5 | 93 | 11 | 125 | 19,5 | 75 | 80 | M 12 | 8 |
| BA28 | SM28 | R | 1 200 | 1 100 | 45 | 45 | 140 | 110 | 136 | 10 | 105 | 3,5 | 95 | 14 | 129 | 24,5 | 85 | 90 | M 12 | 9 |
| BA30 | SM30 | R | 1 600 | 1 000 | 50 | 50 | 155 | 120 | 151 | 10 | 120 | 3,5 | 102 | 16 | 140 | 27,5 | 95 | 100 | M 16 | 12 |
| BA35 | SM35 | R | 1 800 | 900 | 55 | 55 | 170 | 130 | 161 | 10 | 140 | 3,5 | 110 | 19 | 151 | 33,5 | 112 | 110 | M 16 | 15 |
| BA40 | SM40 | R | 3 500 | 800 | 60 | 60 | 190 | 150 | 181 | 12 | 160 | 5,5 | 116 | 22 | 160 | 37,5 | 130 | 120 | M 16 | 20 |
| BA45 | SM45 | R | 7 100 | 750 | 70 | 70 | 210 | 160 | 196 | 14 | 175 | 7,0 | 130 | 26 | 176 | 41,5 | 140 | 130 | M 16 | 25 |
| BA50 | SM50 | R | 7 500 | 700 | 75 | 75 | 220 | 180 | 206 | 14 | 185 | 7,0 | 132 | 26 | 178 | 41,5 | 150 | 140 | M 16 | 30 |
| BA52 | SM52 | R | 9 300 | 650 | 80 | 80 | 230 | 190 | 216 | 14 | 200 | 4,5 | 150 | 26 | 208 | 41,5 | 160 | 150 | M 20 | 35 |
| BA55 | SM55 | R | 12 500 | 550 | 90 | 90 | 255 | 200 | 246 | 15 | 210 | 3,5 | 170 | 29 | 228 | 49,5 | 170 | 160 | M 20 | 50 |
| BA60 | SM60 | R | 14 500 | 500 | 105 | 295 | 220 | 291 | 20 | 250 | 8,5 | 206 | 35 | 273 | 60,0 | 200 | 190 | M 24 | 91 | |
| BA70 | SM70 | R | 22 500 | 425 | 120 | 335 | 260 | 321 | 25 | 280 | 14,0 | 215 | 39 | 291 | 65,0 | 225 | 210 | M 24 | 115 | |
| BA80 | SM80 | R | 25.000 | 375 | 130 | 360 | 280 | 351 | 30 | 280 | 18,5 | 224 | 39 | 302 | 65,0 | 225 | 220 | M 24 | 150 | |
| BA90 | SM90 | R | 33 500 | 350 | 140 | 385 | 300 | 371 | 35 | 310 | 22,5 | 236 | 55 | 314 | 70,0 | 250 | 240 | M 30 | 180 | |
| BA95 | SM95 | R | 35 000 | 300 | 150 | 400 | 350 | 391 | 40 | 310 | 27,5 | 249 | 55 | 337 | 70,0 | 250 | 250 | M 30 | 225 | |
| BA100 | SM100 | R | 57 500 | 250 | 150 | 420 | 380 | 411 | 45 | 345 | 31,5 | 276 | 60 | 372 | 80,0 | 280 | 270 | M 30 | 260 | |
