| Tempat asal: | CINA |
|---|---|
| Nama merek: | SUMA |
| Sertifikasi: | ISO SGS |
| Nomor model: | GVG40 |
| Kuantitas min Order: | 1 |
| Harga: | USD100-USD200 PER PIECE |
| Kemasan rincian: | Kardus |
| Waktu pengiriman: | 7-10 Hari |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union, Paypal |
| Menyediakan kemampuan: | 1000 Pcs per Bulan |
| Nama Produk: | Kopling Backstop GVG40 | Bahan: | Baja bantalan GCr15 |
|---|---|---|---|
| Ukuran: | 40*132*52mm | Kapasitas Torsi: | 1295Nm |
| Kecepatan rotasi: | 300RPM | Jaminan: | 1 tahun |
| Berat unit: | 4kg | OEM: | Menerima |
| Cahaya Tinggi: | 300 RPM Backstop Bearing,GVG40 Backstop Bearing,GVG40 Backstop Clutch Bearing |
||

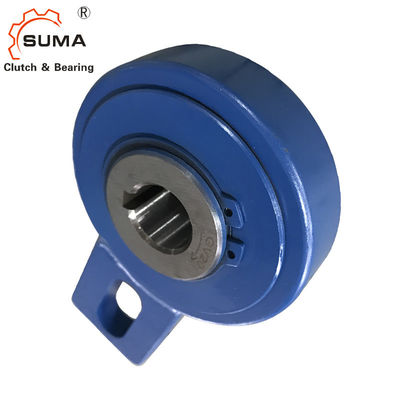

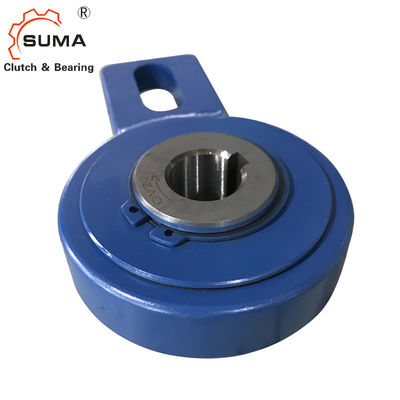

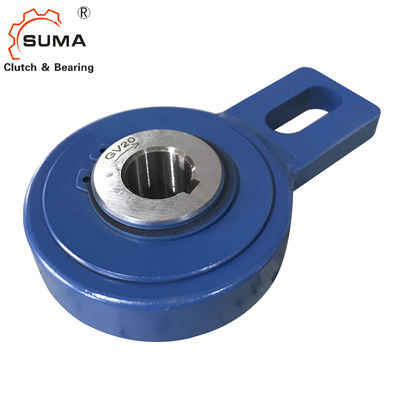

GVG40 Roller 1 Arah 300 RPM Freewheel Backstop Bearing
pengantar
BarangGVG40
BahanGCr15
Ukuran lubang40 mm
diameter luar132 mm
Ketebalan52 mm
Dimensi dan Kapasitas
|
Data teknis |
|
| torsi | 1295 Nm |
| Jenis segel | Tertutup |
| Bobot | 4 kg |
| Maks.kecepatan | 300 rpm |
| Pelabuhan | Shanghai;Ningbo |
| waktu pengiriman | 10-20 hari |
| Model | dH7 | D | L | B1 | L1 | b2 | l2 | l3 | l4 |
Bobot (kg) |
Kecepatan maksimum (rpm) |
torsi (Nm) |
| GVG20 | 20 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.5 | 400 | 606 |
| GVG25 | 25 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.4 | 400 | 606 |
| GVG30 | 30 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 113 | 2.3 | 400 | 606 |
| GVG35 | 35 | 106 | 48 | 40 | 15 | 18 | 35 | 10.5 | 125 | 2.2 | 400 | 606 |
| GVG40 | 40 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 4 | 300 | 1295 |
| GVG45 | 45 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.8 | 300 | 1295 |
| GVG50 | 50 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.7 | 300 | 1295 |
| GVG55 | 55 | 132 | 52 | 60 | 15 | 18 | 35 | 10 | 125 | 3.5 | 300 | 1295 |
| GVG60 | 60 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 6.1 | 250 | 2550 |
| GVG70 | 70 | 161 | 54 | 70 | 15 | 18 | 35 | 10 | 140 | 5.7 | 250 | 2550 |
| GVG80 | 80 | 190 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 10.2 | 200 | 4875 |
| GVG90 | 90 | 290 | 70 | 70 | 20 | 25 | 45 | 15 | 165 | 9.6 | 200 |
4875 |
gambar
