GF12 1 Arah 20Nm Roller Clutch Bearing
Dimensi dan Kapasitas
Jenis | dH7 | Dn6 | L | s | D1 | D2 | b | t | Bobot | Lingkar dalam | Cincin luar | TKN | Tarik torsi |
roda bebas/ | roda bebas/ | ||||||||||||
mm | mm | mm | mm | mm | mm | mm | mm | kg | melampaui min-1 | melampaui min-1 | Nm | Ncm | |
GF 8 | 8 | 37 | 20 | 1 | 20 | 30 | 6 | 3 | 0.1 | 1000 | 1000 | 20 | 0,09 |
GF 9 | 9 | 37 | 20 | 1 | 20 | 30 | 6 | 3 | 0.1 | 1000 | 1000 | 20 | 0,09 |
GF 12 | 12 | 37 | 20 | 1 | 20 | 30 | 6 | 3 | 0.1 | 1000 | 1000 | 20 | 0.11 |
GF 15 | 15 | 47 | 30 | 1 | 26 | 37 | 7 | 3.5 | 0,3 | 900 | 900 | 78 | 0.15 |
GF 20 | 20 | 62 | 36 | 1 | 37 | 52 | 8 | 3.5 | 0.6 | 700 | 700 | 188 | 0.18 |
GF 25 | 25 | 80 | 40 | - | 40 | 68 | 9 | 4 | 1.2 | 2100 | 3600 | 250 | 0.36 |
GF 30 | 30 | 90 | 48 | - | 45 | 75 | 12 | 5 | 1.8 | 1700 | 3200 | 500 | 0.4 |
GF 35 | 35 | 100 | 53 | - | 50 | 80 | 13 | 6 | 2.4 | 1500 | 3000 | 680 | 0.6 |
GF 40 | 40 | 110 | 63 | - | 55 | 90 | 15 | 7 | 3.3 | 1200 | 2600 | 1115 | 0,84 |
GF 45 | 45 | 120 | 63 | - | 60 | 95 | 16 | 7 | 4 | 1000 | 2400 | 1500 | 0,94 |
GF 50 | 50 | 130 | 80 | - | 70 | 110 | 17 | 8.5 | 5.7 | 800 | 2100 | 2375 | 1.28 |
GF 55 | 55 | 140 | 80 | - | 75 | 115 | 18 | 9 | 6.5 | 750 | 2000 | 2500 | 1.5 |
GF 60 | 60 | 150 | 95 | - | 80 | 125 | 18 | 9 | 8.9 | 650 | 1900 | 4250 | 1.6 |
GF 70 | 70 | 170 | 110 | - | 95 | 140 | 20 | 9 | 13.5 | 550 | 1800 | 5875 | 3.6 |
GF 80 | 80 | 190 | 125 | - | 110 | 160 | 20 | 9 | 19 | 500 | 1600 | 10000 | 3.6 |
GF 90 | 90 | 215 | 140 | - | 120 | 180 | 24 | 11.5 | 27.2 | 450 | 1400 | 17350 | 6.8 |
GF 100 | 100 | 260 | 150 | - | 140 | 210 | 28 | 14.5 | 44.5 | 350 | 1300 | 1975 | 8.8 |
GF 130 | 130 | 300 | 180 | - | 160 | 240 | 32 | 17.5 | 68 | 250 | 1000 | 35000 | 12.5 |

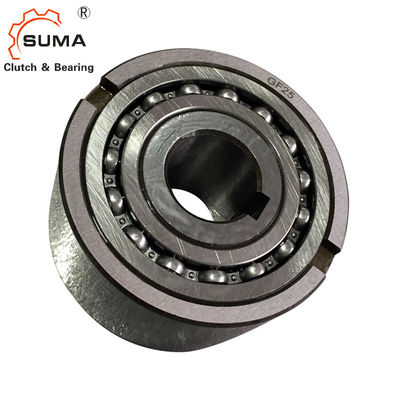

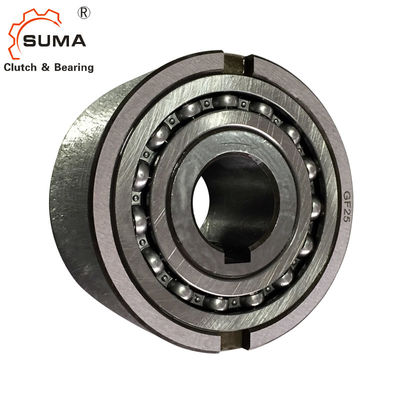

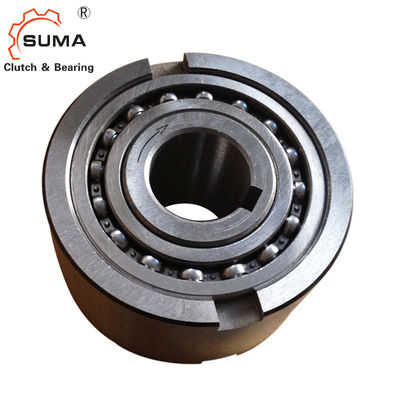

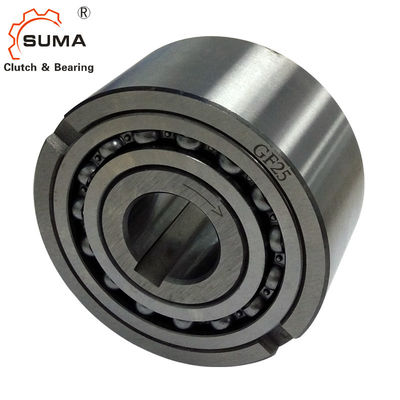

Foto-foto
