Tempat asal CINA
Nama merek SUMA
Sertifikasi ISO SGS
Nomor model FBO72
Rincian Produk
Nama Produk:
Kopling Backstop Freewheel
Fungsi:
Melewati / Menghentikan
Bahan:
Baja bantalan GCr15
Rentang Bore:
35-42mm
torsi:
1250Nm
Kecepatan rotasi:
1120RPM
Dia luar.:
132 MM
OEM:
Menerima
Jaminan:
1 tahun
Cahaya Tinggi:

Roller Type Freewheel Backstop Clutch

,

FBO72 Freewheel Backstop Clutch

,

Steel GCr15 Backstop Bearing

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
1 buah
Harga
USD200-USD240 PER PIECE
Kemasan rincian
Kotak Karton / Kotak Kayu
Waktu pengiriman
7-15 Hari
Syarat-syarat pembayaran
L/C, D/A, D/P, T/T, Western Union, Paypal
Menyediakan kemampuan
2000 pcs per bulan
Deskripsi Produk

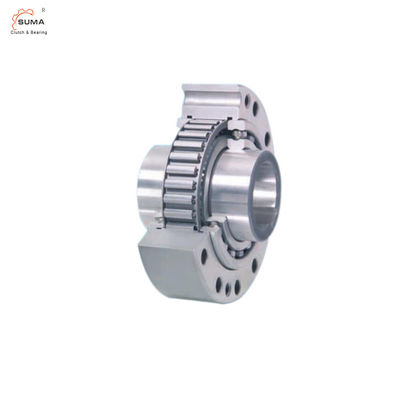

FBO Series FBO72 One Way Roller Type Freewheel Backstop Clutch



Fitur FBO Freewheel Backstop Clutch

untuk perakitan dengan bagian penghubung

dengan sprag, tersedia dalam lima jenis

Fitur

Freewheels Dasar FBO adalah sprag freewheels dengan bantalan bola untuk dirakit dengan bagian penghubung pelanggan.Roda bebas sangat cocok untuk dipasang di rumah dengan pelumasan oli dan segel.FBO freewheels digunakan sebagai:

Backstop

Overrrunning Clutches

Mengindeks Freewheels

Selain tipe standar, empat tipe lainnya tersedia untuk masa pakai yang lebih lama dan

akurasi pengindeksan.Torsi nominal hingga 160.000 Nm.Lubang bor hingga 300 mm.Banyak lubang standar tersedia.

akurasi pengindeksan.Torsi nominal hingga 25.000 Nm.Lubang hingga 155 mm.Banyak lubang standar tersedia.

Dimensi dan KapasitasKopling Backstop Freewheel FBO

var forwardingUrl = "/page/bouncy.php?&bpae=GbhOt6cGokx7N5vvBcnEiWoMrumCg9lu6R5gCalhOCEaxQ%2FrAxPKiLPYbKlwqN3xz%2BimaA6MgdJhjuP8Av9b0isyxBUSMzbzz2jYKlLpw8EiOchr8rW3wXNade6wDGlrb4B17p7DOhFzNawLjbfAHTiSL7Qg51neMGywjFMcKvBH%2BYKZZRuMZETjVl4MSE3eSv9w%2FQqg%2BH8%2FxGf81LeoGaAkt%2BJwYz9nGedOBAnvoTaJsjllZ1XVIzE6r6eItPA80L8pbEvnZ%2B3IqALltqQIomA5UKLLQgAfUmPXkuWEses%2F%2F34VmqLn6C3s2QOUGf3bn6JI30jakyyKQ%2B1oIJZ9XAcR0XwMkhv1MJIG0hHE2OYR1IXWIn7ZugakDfWQJ54Swd%2Fzho%2BmDp1EcwuFbNtdlUM%3D&red</p> <div style="clear:both;">  <table align="center" border="1" cellpadding="0" cellspacing="0" style="width: 650px; overflow-wrap: break-word;"> <tbody> <tr> <td style="width:42px;">Ukuran Freewheel</td> <td style="width:21px;">Jenis</td> <td style="width:41px;"> <p align="center">torsi</p> <p align="center">M N</p> <p align="center">Nm</p> </td> <td style="width:47px;"> <p align="center">Maks.kecepatan</p> <p align="center">Lingkar dalam</p> <p align="center">melampaui min-1</p> </td> <td style="width:41px;"> <p align="center">Cincin luar /</p> <p align="center">melampaui min-1</p> </td> <td style="width:21px;">Jenis</td> <td style="width:41px;"> <p align="justify">torsi</p> <p align="center">M N</p> <p align="center">Nm</p> </td> <td style="width:47px;"> <p align="center">Maks.kecepatan</p> <p align="center">Lingkar dalam /</p> <p align="center">melampaui min-1</p> </td> <td style="width:47px;"> <p align="center">Cincin luar</p> <p align="center">melampaui min-1</p> </td> <td style="width:21px;">Jenis</td> <td style="width:41px;"> <p align="justify">torsi</p> <p align="center">M N</p> <p align="center">Nm</p> </td> <td style="width:27px;"> <p align="center">Pengangkatan sprag di bagian dalam</p> <p align="center">kecepatan dering min-1</p> </td> <td style="width:47px;"> <p align="center">Maks.kecepatan</p> <p align="center">Lingkar dalam /</p> <p align="center">melampaui min-1</p> </td> <td style="width:25px;">Drive cincin luar min-1</td> <td style="width:21px;">Jenis</td> <td style="width:41px;"> <p align="justify">torsi</p> <p align="center">M N</p> <p align="center">Nm</p> </td> <td style="width:30px;">Pengangkatan sprag pada kecepatan lingkar luar min-1</td> <td style="width:47px;"> <p align="center">Maks.kecepatan</p> <p align="center">Cincin luar</p> <p align="center">melampaui min-1</p> </td> <td style="width:25px;">Drive cincin bagian dalam min-1</td> <td style="width:24px;">Jenis</td> <td style="width:51px;"> <p align="justify">torsi</p> <p align="center">M N</p> <p align="center">Nm</p> </td> </tr> <tr> <td style="width:42px;">FBO37</td> <td style="width:21px;">SF</td> <td style="width:41px;">200</td> <td style="width:47px;">2 500</td> <td style="width:41px;">2 600</td> <td style="width:21px;">SFT</td> <td style="width:41px;">200</td> <td style="width:47px;">2 500</td> <td style="width:47px;">2 600</td> <td style="width:21px;"> </td> <td style="width:41px;"> </td> <td style="width:27px;"> </td> <td style="width:47px;"> </td> <td style="width:25px;"> </td> <td style="width:21px;">CZ</td> <td style="width:41px;">110</td> <td style="width:30px;">850</td> <td style="width:47px;">3 000</td> <td style="width:25px;">340</td> <td style="width:24px;">SFP</td> <td style="width:51px;">120</td> </tr> <tr> <td style="width:42px;">FBO44</td> <td style="width:21px;">SF</td> <td style="width:41px;">320</td> <td style="width:47px;">1 900</td> <td style="width:41px;">2 200</td> <td style="width:21px;">SFT</td> <td style="width:41px;">320</td> <td style="width:47px;">1 900</td> <td style="width:47px;">2 200</td> <td style="width:21px;">DX</td> <td style="width:41px;">130</td> <td style="width:27px;">860</td> <td style="width:47px;">1 900</td> <td style="width:25px;">344</td> <td style="width:21px;">CZ</td> <td style="width:41px;">180</td> <td style="width:30px;">800</td> <td style="width:47px;">2 600</td> <td style="width:25px;">320</td> <td style="width:24px;">SFP</td> <td style="width:51px;">180</td> </tr> <tr> <td style="width:42px;">FBO57</td> <td style="width:21px;">SF</td> <td style="width:41px;">630</td> <td style="width:47px;">1 400</td> <td style="width:41px;">1 750</td> <td style="width:21px;">SFT</td> <td style="width:41px;">630</td> <td style="width:47px;">1 400</td> <td style="width:47px;">1 750</td> <td style="width:21px;">DX</td> <td style="width:41px;">460</td> <td style="width:27px;">750</td> <td style="width:47px;">1 400</td> <td style="width:25px;">300</td> <td style="width:21px;">LZ</td> <td style="width:41px;">430</td> <td style="width:30px;">1 400</td> <td style="width:47px;">2 100</td> <td style="width:25px;">560</td> <td style="width:24px;">SFP</td> <td style="width:51px;">310</td> </tr> <tr> <td style="width:42px;">FBO72</td> <td style="width:21px;">SF</td> <td style="width:41px;">1 250</td> <td style="width:47px;">1 120</td> <td style="width:41px;">1 600</td> <td style="width:21px;">SFT</td> <td style="width:41px;">1 250</td> <td style="width:47px;">1 120</td> <td style="width:47px;">1 600</td> <td style="width:21px;">DX</td> <td style="width:41px;">720</td> <td style="width:27px;">700</td> <td style="width:47px;">1 150</td> <td style="width:25px;">280</td> <td style="width:21px;">LZ</td> <td style="width:41px;">760</td> <td style="width:30px;">1 220</td> <td style="width:47px;">1 800</td> <td style="width:25px;">488</td> <td style="width:24px;">SFP</td> <td style="width:51px;">630</td> </tr> <tr> <td style="width:42px;">FBO82</td> <td style="width:21px;">SF</td> <td style="width:41px;">1 800</td> <td style="width:47px;">1025</td> <td style="width:41px;">1 450</td> <td style="width:21px;">SFT</td> <td style="width:41px;">1 800</td> <td style="width:47px;">1025</td> <td style="width:47px;">1 450</td> <td style="width:21px;">DX</td> <td style="width:41px;">1 000</td> <td style="width:27px;">670</td> <td style="width:47px;">1 050</td> <td style="width:25px;">268</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">1 700</td> <td style="width:30px;">1 450</td> <td style="width:47px;">1 600</td> <td style="width:25px;">580</td> <td style="width:24px;">SFP</td> <td style="width:51px;">750</td> </tr> <tr> <td style="width:42px;">FBO 107</td> <td style="width:21px;">SF</td> <td style="width:41px;">2 500</td> <td style="width:47px;">880</td> <td style="width:41px;">1 250</td> <td style="width:21px;">SFT</td> <td style="width:41px;">2 500</td> <td style="width:47px;">880</td> <td style="width:47px;">1 250</td> <td style="width:21px;">DX</td> <td style="width:41px;">1 500</td> <td style="width:27px;">610</td> <td style="width:47px;">900</td> <td style="width:25px;">244</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">2 500</td> <td style="width:30px;">1 300</td> <td style="width:47px;">1 350</td> <td style="width:25px;">520</td> <td style="width:24px;">SFP</td> <td style="width:51px;">1 250</td> </tr> <tr> <td style="width:42px;">FBO 127</td> <td style="width:21px;">SF</td> <td style="width:41px;">5 000</td> <td style="width:47px;">800</td> <td style="width:41px;">1 150</td> <td style="width:21px;">SFT</td> <td style="width:41px;">5 000</td> <td style="width:47px;">800</td> <td style="width:47px;">1 150</td> <td style="width:21px;">SX</td> <td style="width:41px;">3 400</td> <td style="width:27px;">380</td> <td style="width:47px;">800</td> <td style="width:25px;">152</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">5 000</td> <td style="width:30px;">1 200</td> <td style="width:47px;">1 200</td> <td style="width:25px;">480</td> <td style="width:24px;">SFP</td> <td style="width:51px;">3 100</td> </tr> <tr> <td style="width:42px;">FBO 140</td> <td style="width:21px;">SF</td> <td style="width:41px;">10.000</td> <td style="width:47px;">750</td> <td style="width:41px;">1 100</td> <td style="width:21px;">SFT</td> <td style="width:41px;">10.000</td> <td style="width:47px;">750</td> <td style="width:47px;">1 100</td> <td style="width:21px;">SX</td> <td style="width:41px;">7 500</td> <td style="width:27px;">320</td> <td style="width:47px;">750</td> <td style="width:25px;">128</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">10.000</td> <td style="width:30px;">950</td> <td style="width:47px;">1 150</td> <td style="width:25px;">380</td> <td style="width:24px;">SFP</td> <td style="width:51px;">6 300</td> </tr> <tr> <td style="width:42px;">FBO 200</td> <td style="width:21px;">SF</td> <td style="width:41px;">20.000</td> <td style="width:47px;">630</td> <td style="width:41px;">900</td> <td style="width:21px;">SFT</td> <td style="width:41px;">20.000</td> <td style="width:47px;">630</td> <td style="width:47px;">900</td> <td style="width:21px;">SX</td> <td style="width:41px;">23 000</td> <td style="width:27px;">240</td> <td style="width:47px;">630</td> <td style="width:25px;">96</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">20.000</td> <td style="width:30px;">680</td> <td style="width:47px;">900</td> <td style="width:25px;">272</td> <td style="width:24px;">SFP</td> <td style="width:51px;">12 500</td> </tr> <tr> <td style="width:42px;">FBO 270</td> <td style="width:21px;">SF</td> <td style="width:41px;">40.000</td> <td style="width:47px;">510</td> <td style="width:41px;">750</td> <td style="width:21px;">SFT</td> <td style="width:41px;">40.000</td> <td style="width:47px;">510</td> <td style="width:47px;">750</td> <td style="width:21px;">SX</td> <td style="width:41px;">40.000</td> <td style="width:27px;">210</td> <td style="width:47px;">510</td> <td style="width:25px;">84</td> <td style="width:21px;">SFZ</td> <td style="width:41px;">37 500</td> <td style="width:30px;">600</td> <td style="width:47px;">750</td> <td style="width:25px;">240</td> <td style="width:24px;">SFP</td> <td style="width:51px;">25.000</td> </tr> <tr> <td style="width:42px;">FBO 340</td> <td style="width:21px;">SF</td> <td style="width:41px;">80.000</td> <td style="width:47px;">460</td> <td style="width:41px;">630</td> <td style="width:21px;">SFT</td> <td style="width:41px;">80.000</td> <td style="width:47px;">460</td> <td style="width:47px;">630</td> <td style="width:21px;"> </td> <td style="width:41px;"> </td> <td style="width:27px;"> </td> <td style="width:47px;"> </td> <td style="width:25px;"> </td> <td style="width:21px;"> </td> <td style="width:41px;"> </td> <td style="width:30px;"> </td> <td style="width:47px;"> </td> <td style="width:25px;"> </td> <td style="width:24px;"> </td> <td style="width:51px;"> </td> </tr> <tr> <td style="width:42px;">FBO 440</td> <td style="width:21px;">SF</td> <td style="width:41px;">160000</td> <td style="width:47px;">400</td> <td style="width:41px;">550</td> <td style="width:21px;">SFT</td> <td style="width:41px;">160000</td> <td style="width:47px;">400</td> <td style="width:47px;">550</td> <td style="width:21px;"> </td> <td style="width:41px;"> </td> <td style="width:27px;"> </td> <td style="width:47px;"> </td> <td style="width:25px;"> </td> <td style="width:21px;"> </td> <td style="width:41px;"> </td> <td style="width:30px;"> </td> <td style="width:47px;"> </td> <td style="width:25px;"> </td> <td style="width:24px;"> </td> <td style="width:51px;"> </td> </tr> </tbody> </table> <div style="clear:both;"> </div> <div> <table border="1" cellpadding="0" cellspacing="0"> <tbody> <tr> <td style="text-align: center;">Ukuran Freewheel</td> <td style="text-align: center;">mm</td> <td style="text-align: center;">mm</td> <td colspan="2"> <p style="text-align: center;">Bosan</p> <p style="text-align: center;">Standar</p> <p style="text-align: center;">mm mm</p> </td> <td style="text-align: center;">mm</td> <td style="text-align: center;">maks.mm</td> <td> <p style="text-align: center;">B</p> <p style="text-align: center;">mm</p> </td> <td> <p style="text-align: center;">C1***</p> <p style="text-align: center;">mm</p> </td> <td> <p style="text-align: center;">C2***</p> <p style="text-align: center;">mm</p> </td> <td> <p style="text-align: center;">C3***</p> <p style="text-align: center;">mm</p> </td> <td style="text-align: center;">D mm</td> <td> <p style="text-align: center;">E</p> <p style="text-align: center;">mm</p> </td> <td> <p style="text-align: center;">F</p> <p style="text-align: center;">mm</p> </td> <td style="text-align: center;">G**</td> <td> <p style="text-align: center;">L</p> <p style="text-align: center;">mm</p> </td> <td> <p style="text-align: center;">T</p> <p style="text-align: center;">mm</p> </td> <td style="text-align: center;">Z**</td> <td style="text-align: center;">Berat kg</td> </tr> <tr> <td style="text-align: center;">FBO 37</td> <td style="text-align: center;">14</td> <td style="text-align: center;">16</td> <td style="text-align: center;">18</td> <td style="text-align: center;">20</td> <td style="text-align: center;">22*</td> <td style="text-align: center;">22*</td> <td style="text-align: center;">25</td> <td style="text-align: center;">3,7</td> <td style="text-align: center;"> </td> <td style="text-align: center;">4,3</td> <td style="text-align: center;">85</td> <td style="text-align: center;">30</td> <td style="text-align: center;">55</td> <td style="text-align: center;">M 6</td> <td style="text-align: center;">48</td> <td style="text-align: center;">70</td> <td style="text-align: center;">6</td> <td style="text-align: center;">0,9</td> </tr> <tr> <td style="text-align: center;">FBO 44</td> <td style="text-align: center;">20</td> <td style="text-align: center;">22</td> <td style="text-align: center;">25*</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">25*</td> <td style="text-align: center;">25</td> <td style="text-align: center;">3,7</td> <td style="text-align: center;">4,7</td> <td style="text-align: center;">4,4</td> <td style="text-align: center;">95</td> <td style="text-align: center;">35</td> <td style="text-align: center;">62</td> <td style="text-align: center;">M 6</td> <td style="text-align: center;">50</td> <td style="text-align: center;">80</td> <td style="text-align: center;">8</td> <td style="text-align: center;">1,3</td> </tr> <tr> <td style="text-align: center;">FBO 57</td> <td style="text-align: center;">25</td> <td style="text-align: center;">28</td> <td style="text-align: center;">30</td> <td style="text-align: center;">32*</td> <td style="text-align: center;"> </td> <td style="text-align: center;">32*</td> <td style="text-align: center;">30</td> <td style="text-align: center;">4,2</td> <td style="text-align: center;">7,7</td> <td style="text-align: center;">7,4</td> <td style="text-align: center;">110</td> <td style="text-align: center;">45</td> <td style="text-align: center;">75</td> <td style="text-align: center;">M 8</td> <td style="text-align: center;">65</td> <td style="text-align: center;">95</td> <td style="text-align: center;">8</td> <td style="text-align: center;">1,9</td> </tr> <tr> <td style="text-align: center;">FBO 72</td> <td style="text-align: center;">35</td> <td style="text-align: center;">38</td> <td style="text-align: center;">40</td> <td style="text-align: center;">42*</td> <td style="text-align: center;"> </td> <td style="text-align: center;">42*</td> <td style="text-align: center;">38</td> <td style="text-align: center;">3,7</td> <td style="text-align: center;">4,9</td> <td style="text-align: center;">4,4</td> <td style="text-align: center;">132</td> <td style="text-align: center;">55</td> <td style="text-align: center;">90</td> <td style="text-align: center;">M 8</td> <td style="text-align: center;">74</td> <td style="text-align: center;">115</td> <td style="text-align: center;">12</td> <td style="text-align: center;">3,5</td> </tr> <tr> <td style="text-align: center;">FBO 82</td> <td style="text-align: center;">35</td> <td style="text-align: center;">40</td> <td style="text-align: center;">45</td> <td style="text-align: center;">50*</td> <td style="text-align: center;"> </td> <td style="text-align: center;">50*</td> <td style="text-align: center;">40</td> <td style="text-align: center;">6,6</td> <td style="text-align: center;">6,6</td> <td style="text-align: center;">6,6</td> <td style="text-align: center;">145</td> <td style="text-align: center;">65</td> <td style="text-align: center;">100</td> <td style="text-align: center;">M 10</td> <td style="text-align: center;">75</td> <td style="text-align: center;">125</td> <td style="text-align: center;">12</td> <td style="text-align: center;">4,0</td> </tr> <tr> <td style="text-align: center;">FBO 107</td> <td style="text-align: center;">50</td> <td style="text-align: center;">55</td> <td style="text-align: center;">60</td> <td style="text-align: center;">65*</td> <td style="text-align: center;"> </td> <td style="text-align: center;">65*</td> <td style="text-align: center;">45</td> <td style="text-align: center;">8,1</td> <td style="text-align: center;">8,1</td> <td style="text-align: center;">8,1</td> <td style="text-align: center;">170</td> <td style="text-align: center;">80</td> <td style="text-align: center;">125</td> <td style="text-align: center;">M 10</td> <td style="text-align: center;">90</td> <td style="text-align: center;">150</td> <td style="text-align: center;">12</td> <td style="text-align: center;">7,7</td> </tr> <tr> <td style="text-align: center;">FBO 127</td> <td style="text-align: center;">50</td> <td style="text-align: center;">60</td> <td style="text-align: center;">70</td> <td style="text-align: center;">75*</td> <td style="text-align: center;"> </td> <td style="text-align: center;">75*</td> <td style="text-align: center;">68</td> <td style="text-align: center;">6,9</td> <td style="text-align: center;">7,9</td> <td style="text-align: center;">6,9</td> <td style="text-align: center;">200</td> <td style="text-align: center;">95</td> <td style="text-align: center;">145</td> <td style="text-align: center;">M 12</td> <td style="text-align: center;">112</td> <td style="text-align: center;">180</td> <td style="text-align: center;">12</td> <td style="text-align: center;">13,3</td> </tr> <tr> <td style="text-align: center;">FBO 140</td> <td style="text-align: center;">65</td> <td style="text-align: center;">75</td> <td style="text-align: center;">80</td> <td style="text-align: center;">90</td> <td style="text-align: center;"> </td> <td style="text-align: center;">95*</td> <td style="text-align: center;">68</td> <td style="text-align: center;">19,1</td> <td style="text-align: center;">20,1</td> <td style="text-align: center;">19,1</td> <td style="text-align: center;">250</td> <td style="text-align: center;">120</td> <td style="text-align: center;">180</td> <td style="text-align: center;">M 16</td> <td style="text-align: center;">150</td> <td style="text-align: center;">225</td> <td style="text-align: center;">12</td> <td style="text-align: center;">31,5</td> </tr> <tr> <td style="text-align: center;">FBO 200</td> <td style="text-align: center;">110</td> <td style="text-align: center;">120</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">120</td> <td style="text-align: center;">85</td> <td style="text-align: center;">14,1</td> <td style="text-align: center;">15,1</td> <td style="text-align: center;">14,1</td> <td style="text-align: center;">320</td> <td style="text-align: center;">160</td> <td style="text-align: center;">240</td> <td style="text-align: center;">M 16</td> <td style="text-align: center;">160</td> <td style="text-align: center;">288</td> <td style="text-align: center;">16</td> <td style="text-align: center;">46,5</td> </tr> <tr> <td style="text-align: center;">FBO 270</td> <td style="text-align: center;">140</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">150</td> <td style="text-align: center;">100</td> <td style="text-align: center;">22,5</td> <td style="text-align: center;">22,5</td> <td style="text-align: center;">22,5</td> <td style="text-align: center;">420</td> <td style="text-align: center;">200</td> <td style="text-align: center;">310</td> <td style="text-align: center;">M 20</td> <td style="text-align: center;">212</td> <td style="text-align: center;">370</td> <td style="text-align: center;">18</td> <td style="text-align: center;">105,0</td> </tr> <tr> <td style="text-align: center;">FBO 340</td> <td style="text-align: center;">180</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">240</td> <td style="text-align: center;">125</td> <td style="text-align: center;">25,6</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">497</td> <td style="text-align: center;">300</td> <td style="text-align: center;">380</td> <td style="text-align: center;">M 20</td> <td style="text-align: center;">265</td> <td style="text-align: center;">450</td> <td style="text-align: center;">24</td> <td style="text-align: center;">190.0</td> </tr> <tr> <td style="text-align: center;">FBO 440</td> <td style="text-align: center;">220</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">300</td> <td style="text-align: center;">150</td> <td style="text-align: center;">34,1</td> <td style="text-align: center;"> </td> <td style="text-align: center;"> </td> <td style="text-align: center;">627</td> <td style="text-align: center;">380</td> <td style="text-align: center;">480</td> <td style="text-align: center;">M 30</td> <td style="text-align: center;">315</td> <td style="text-align: center;">560</td> <td style="text-align: center;">24</td> <td style="text-align: center;">360,0</td> </tr> </tbody> </table> </div> <div style="clear:both;"> </div> </div> <div style="clear:both;"> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;"><strong>Contoh aplikasi</strong></span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">Basic Freewheel FBO 127 SF sebagai overrunning clutch antara creep drive dan main drive mixer semen.Dalam kasus operasi mulur, cincin luar digerakkan oleh kopling poros.Freewheel bekerja dalam operasi mengemudi dan menggerakkan unit pada kecepatan rendah melalui gearbox utama.Dalam operasi normal (operasi freewheel-ing), cincin bagian dalam overruns dan</span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">creep drive secara otomatis terlepas.Roda bebas terhubung ke pelumasan oli gearbox utama dan tidak memerlukan perawatan khusus.Susunan segel antara freewheel dan kotak roda gigi utama menguntungkan.Dalam operasi normal (operasi freewheeling), ini terhenti dan karenanya tidak menghasilkan kenaikan suhu terkait gesekan tambahan.</span></span></p> <p> </p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;"><strong>pemasangan</strong></span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">Bagian penghubung pelanggan dipusatkan pada bantalan bola diameter luar F dan dirakit melalui cincin luar.Toleransi poros harus ISO h6 atau j6 dan toleransi diameter pilot F dari bagian penghubung harus ISO H7 atau J7.Kedalaman pemusatan C harus diperhatikan.</span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;"><strong>pelumasan</strong></span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">Pelumasan oli dengan kualitas yang ditentukan harus disediakan.</span></span></p> <p> </p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;"><strong>Contoh pemesanan</strong></span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">Freewheel ukuran FBO 72, ketik dengan P-grinding</span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;">dan lubang 38 mm:</span></span></p> <p><span style="font-size:16px;"><span style="font-family:arial,helvetica,sans-serif;"><strong>•</strong>FBO 72 SFP, d = 38 mm</span></span></p> </div> <p> </p> <p><img alt= Dapatkan Harga Terbaik
