Overrunning Clutch Bearing
>
|
|
| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CKL-A80210 |
CKL-A90270 Overrunning Clutch Coupling Bearing Satu Arah
|
Jenis
|
Torsi Normal
|
Kecepatan Melampaui r/mnt |
Dimensi mm |
Bobot
|
|||||||||
| Balapan batin | Ras luar | dH7 | Dk (H7) | D | D 1 | L | L 1 | L 2 | B | bn ×tn | |||
| CKL-A1252 | 44 | 2125 | 2100 | 12 | 12~25 | 52 | 97 | 90.0 | 35 | 42 | 13.0 | 2×1.0 | 3.0 |
| CKL-A1568 | 90 | 1615 | 2100 | 15 | 15~30 | 68 | 112 | 110.0 | 40 | 52 | 18.0 | 3 × 1,4 | 4.4 |
| CKL-A2075 | 98 | 1360 | 1960 | 20 | 15~30 | 75 | 118 | 114,5 | 40 | 56 | 14.0 | 3 × 1,4 | 4.6 |
| CKL-A2590 | 230 | 1190 | 1610 | 25 | 20~40 | 90 | 130 | 127.5 | 50 | 60 | 17.5 | 4 × 1,8 | 6.4 |
| CKL-A30100 | 400 | 1105 | 1470 | 30 | 20~50 | 100 | 160 | 146.0 | 60 | 66 | 20.0 | 5 × 2.3 | 11 |
| CKL-A35110 | 580 | 935 | 1330 | 35 | 25~65 | 110 | 190 | 168.0 | 75 | 74 | 19.0 | 6 × 2.8 | 17 |
| CKL-A40125 | 820 | 807.5 | 1190 | 40 | 25~65 | 125 | 190 | 178.0 | 75 | 86 | 17.0 | 6 × 2.8 | 19 |
| CKL-A45130 | 840 | 765 | 1120 | 45 | 25~65 | 130 | 190 | 178.0 | 75 | 86 | 17.0 | 6 × 2.8 | 19 |
| CKL-A48150 | 1400 | 730 | 1000 | 48 | 25~65 | 150 | 225 | 207.0 | 90 | 88 | 25.0 | 14 × 3,8 | 31.5 |
| CKL-A50150 | 1400 | 722.5 | 980 | 50 | 30~75 | 150 | 225 | 207.0 | 90 | 92 | 25.0 | 14 × 3,8 | 31 |
| CKL-A55160 | 1600 | 612 | 910 | 55 | 35~90 | 160 | 270 | 233.5 | 100 | 104 | 29.5 | 16 × 4.3 | 47 |
| CKL-A60170 | 2200 | 578 | 840 | 60 | 35~90 | 170 | 270 | 244.0 | 94 | 114 | 30.0 | 18×4.4 | 49 |
| CKL-A70170 | 2200 | 578 | 840 | 70 | 35~90 | 170 | 270 | 267 | 117 | 114 | 30.0 | 20 × 4,9 | 48 |
| CKL-A70190 | 4500 | 493 | 770 | 70 | 45~110 | 190 | 340 | 312.5 | 140 | 134 | 38.5 | 20 × 4,9 | 90 |
| CKL-A75190 | 4500 | 493 | 770 | 75 | 50~120 | 190 | 340 | 312.5 | 140 | 134 | 35.0 | 20 × 4,9 | 88 |
| CKL-A80210 | 6800 | 408 | 630 | 80 | 55~125 | 210 | 380 | 340.0 | 160 | 142 | 35.0 | 22×5.4 | 107 |
| CKL-A90230 | 11000 | 323 | 595 | 90 | 65~140 | 230 | 440 | 369.0 | 160 | 159 | 50.0 | 25 × 6,4 | 170 |
| CKL-A95230 | 11000 | 323 | 595 | 95 | 70~145 | 230 | 440 | 379.0 | 160 | 175 | 35.0 | 25×5.4 | 165 |
| CKL-A100270 | 16000 | 297.5 | 525 | 100 | 76~160 | 270 | 500 | 422.5 | 200 | 182 | 40.5 | 28 × 6,4 | 230 |
| CKL-A75170 | 2200 | 578 | 840 | 75 | 35~90 | 170 | 270 | 291 | 140 | 114 | 30.0 | 20 × 4,9 | 46 |
Dimensi dan Kapasitas
Fitur
Tipe CKL-A adalah freewheels tipe sprag, mandiri, disegel dan didukung bantalan.Unit dikirim dilumasi oli.
Balapan bagian dalam dan flensa dikunci ke poros yang berlawanan.
Kombinasi ini digunakan sebagai overrunning clutch dan banyak digunakan dalam mekanisme packing, traffic.dan metalury.mine dan sebagainya.
Contoh Pemasangan

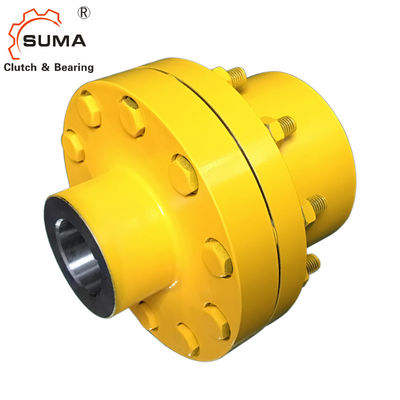

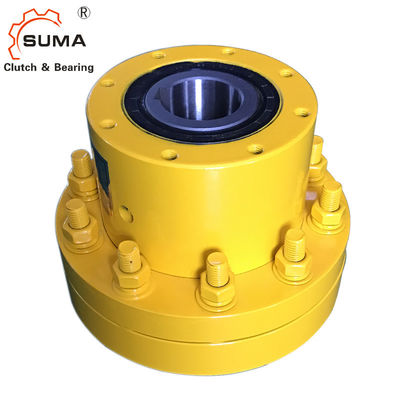

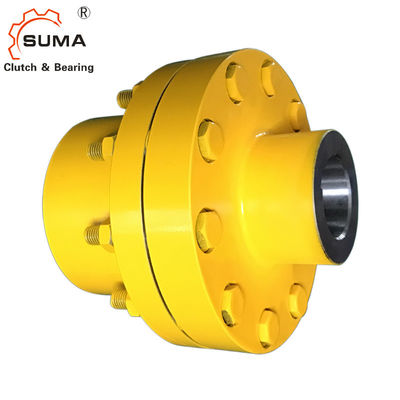

Gambar Produk:
Aplikasi
