Pengikut Kamera Tipe Stud
>
|
| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CFH-1 7/8-B |

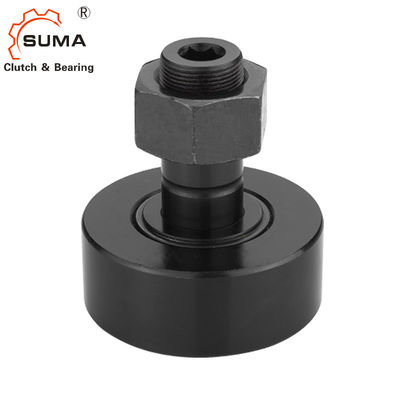

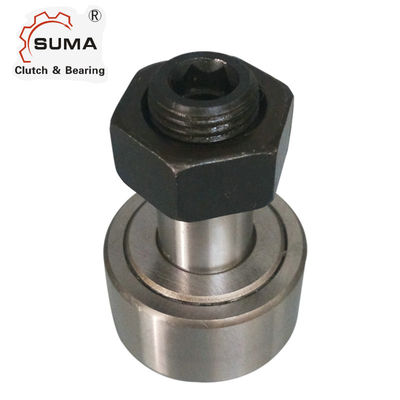

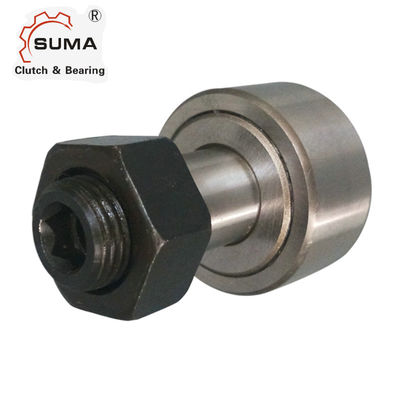

CFH-1 7/8-B Sealed Stud Track Roller Cam Follower Bearings
Fitur
Ini dapat menanggung beban radial tinggi dan beban kejut tertentu dan banyak digunakan dalam peralatan mesin, metalurgi, tekstil dan mesin cetak, jalur pemrosesan dan lain-lain.
Komposisi: lingkar luar berdinding tebal mesin, rol jarum atau set rol silindris, atau pemandu sangkar atau rol jarum pelengkap lengkap, cincin dalam atau baut dan segel.
Menampilkan: beberapa struktur kompak, akurasi berputar tinggi, varietas besar, kemampuan beradaptasi yang luas dan pemasangan yang mudah.
Dimensi dan Kapasitas
| tidak tersegel BRG. TIDAK. |
TERTUTUP BRG. TIDAK. |
ROL LER |
ROL LER |
STUD DIA (SD) |
STUD GTH |
MIN. EAD GTH |
BAGUS EAD |
LUBANG MINYAK | LUB TEPAT UKURAN (F) |
RRCOM. CL AMPING TORSI LBS. DI |
|
|
LUBANG TER |
LUBANG (HD) |
||||||||||
| CFH-1/2-B | CFH-1/2-B | 0,500 | 0,375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | |||
| CFH-9/16-B | CFH-9/16-B | 0,5625 | 0,375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | |||
| CFH-5/8-B | CFH-5/8-B | 0,625 | 0,4375 | 0,3125 | 3/4 | 16/5 | 16/5-24 | 90 | |||
| CFH-11/16-B | CFH-11/16-B | 0,6875 | 0,4375 | 0,3125 | 3/4 | 16/5 | 16/5-24 | 90 | |||
| CFH-3/4-B | CFH-3/4-B | 0,750 | 0,500 | 0,4375 | 7/8 | 3/8 | 16/7-20 | 1/4 | 3/32 | 3/16 | 250 |
| CFH-7/8-B | CFH-7/8-B | 0,875 | 0,500 | 0,4375 | 7/8 | 3/8 | 16/7-20 | 1/4 | 3/32 | 3/16 | 250 |
| CFH-1-B | CFH-1-B | 1.000 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| CFH-1 1/8-B | CFH-1 1/8-B | 1.1250 | 0,625 | 0,625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| CFH-1 1/4-B | CFH-1 1/4-B | 1.250 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 16/5 | 3/32 | 3/16 | 1250 |
| CFH-1 3/8-B | CFH-1 3/8-B | 1,375 | 0,750 | 0,750 | 1 1/4 | 5/8 | 3/4-16 | 16/5 | 3/32 | 3/16 | 1250 |
| CFH-1 1/2-B | CFH-1 1/2-B | 1.500 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| CFH-1 5/8-B | CFH-1 5/8-B | 1.625 | 0,875 | 0,875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| CFH-1 3/4-B | CFH-1 3/4-B | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 16/7 | 3/32 | 3/16 | 2250 |
| CFH-1 7/8-B | CFH-1 7/8-B | 1,875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 16/7 | 3/32 | 3/16 | 2250 |
| CFH-2-B | CFH-2-B | 2.000 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| CFH-2 1/4-B | CFH-2 1/4-B | 2.250 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| CFH-2 1/2-B | CFH-2 1/2-B | 2.500 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| CFH-2 3/4-B | CFH-2 3/4-B | 2.750 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| CFH-3-B | CFH-3-B | 3.000 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| CFH-3 1/4-B | CFH-3 1/4-B | 3.250 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| CFH-3 1/2-B | CFH-3 1/2-B | 3.500 | 1.750 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1/4 | 5000 |
| CFH-4-B | CFH-4-B | 4.000 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 |
Data Teknis
| Nama Produk | Roller Track Tipe Stud CFH-1 7/8-B |
| Model | CFH-1 7/8-B |
| Bahan | GCr15 |
| Kemasan | Kotak karton / kotak kayu, katrol, dll |
| Syarat pembayaran | TT.L/C, D/A, D/P, Western Union |
| waktu pengiriman | 2-4 hari untuk sampel, 7 hari untuk pesanan besar |
Foto-foto
