| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | KR13 CF5 |

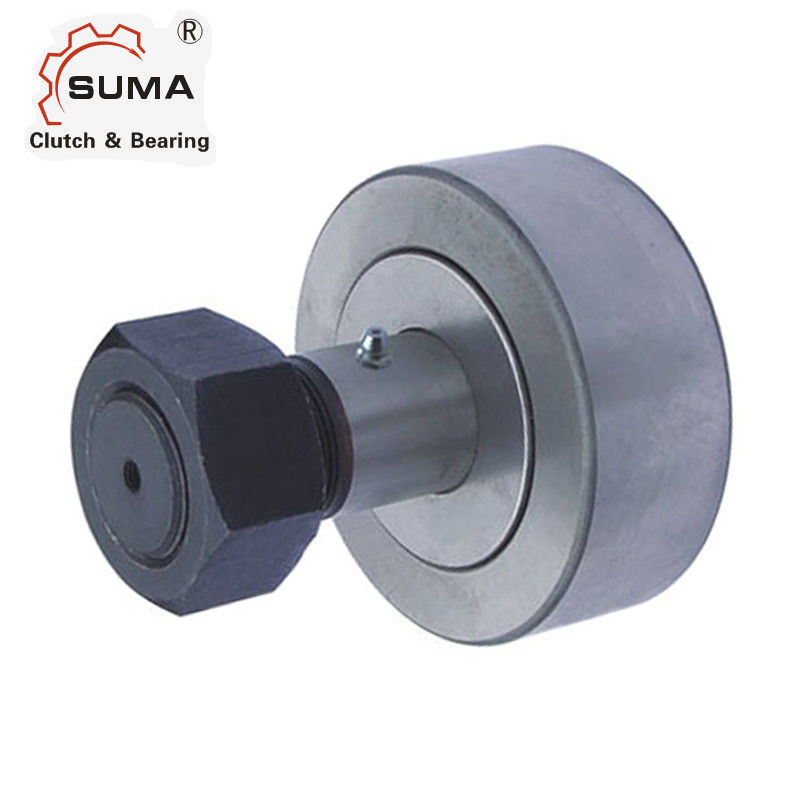

KR13 CF5 Alat Mesin Pengikut Cam Jenis Silinder Stud
Fitur
1. beberapa struktur kompak
2. akurasi berputar tinggi
3. varietas besar
4. kemampuan beradaptasi yang luas
5. instalasi mudah
6. menanggung beban radial tinggi dan beban kejut tertentu
Data Teknis
| Nama Produk | KR40 CF18 Yoke Type Track Roller Bearing |
| Model | KR40 CF18 |
| Bahan | GCr15 |
| Kemasan | Kotak karton / kotak kayu, katrol, dll |
| Syarat pembayaran | TT.L/C, D/A, D/P, Western Union |
| waktu pengiriman | 2-4 hari untuk sampel, 7 hari untuk pesanan besar |
Dimensi dan Kapasitas
| Model | Bobot (gram) |
d mm |
D mm |
C mm |
B1 mm |
B2 mm |
G
|
G1 mm |
|
| tidak ada segel | Model referensi | ||||||||
| CF 3 | KR10 | 4,5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
| CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
| CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
| CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
| CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
| CF10 | KR22 | 45.0 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF10-1 | KR26 | 60.0 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF12 | KR30 | 95.0 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF12-1 | KR32 | 105.0 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF16 | KR35 | 170.0 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
| CF18 | KR40 | 250.0 | 18 | 40 | 20 | 58 | 36,5 | M18X1.5 | 19 |
| CF20 | KR47 | 460.0 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
| CF20-1 | KR52 | 385.0 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
| CF24 | KR62 | 815.0 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF24-1 | KR72 | 1.140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF30 | KR80 | 1,870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-1 | KR85 | 2.030 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-2 | KR90 | 2.220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |
