| Tempat asal | CINA |
| Nama merek | SUMA |
| Sertifikasi | ISO SGS |
| Nomor model | CF-1/2-N-SB |

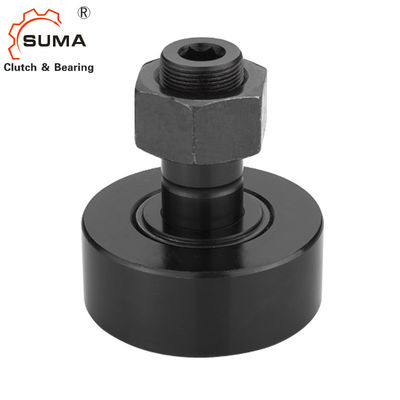

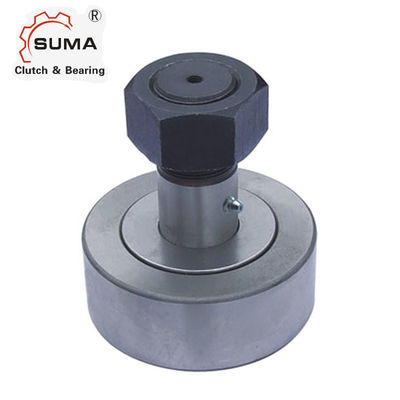

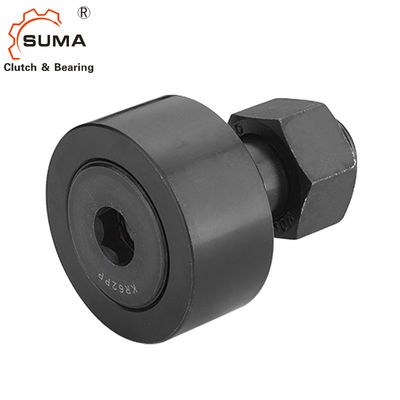

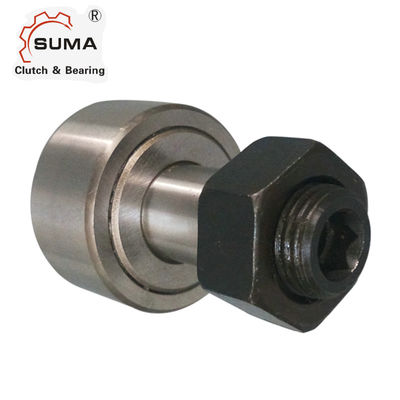

CF-1/2-N-SB Pengikut Cam Eksentrik Stud Metalurgi
Fitur
Stud memiliki bushing yang didorong ke atasnya yang memiliki diameter luar eksentrik.
Hal ini memungkinkan penyesuaian selama pemasangan untuk menghilangkan reaksi balik. Kisaran yang dapat disesuaikan untuk bantalan eksentrik adalah dua kali lipat dari eksentrisitas.
Dimensi dan Kapasitas
| Buka segel No. | disegel no. | Roller Dia.(RD) |
Rol Lebar (W) |
Pejantan Dia. (SD) |
Panjang pejantan (TL) |
Min ketiga Panjang (TL) |
Bagus Utas |
Pemasangan Lub Ukuran (F) |
Merekomendasikan Toque |
Statis Kapasitas Lbs |
Dinamis Kapasitas Lbs |
| CF-1/2-NB | CF-1/2-N-SB | 0,5 | 0,344 | 0.19 | 1/2 | 1/4 | 10-32 | 15 | 720 | 620 | |
| CF-1/2-B | CF-1/2-SB | 0,5 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| CF-9/16-B | CF-9/16-SB | 0,5625 | 0,375 | 0.19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| CF-5/8-NB | CF-5/8-N-SB | 0,625 | 0,406 | 0,25 | 5/8 | 16/5 | 1/4-28 | 35 | 1065 | 930 | |
| CF-5/8-B | CF-5/8-SB | 0,625 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 35 | 1215 | 955 | |
| CF-11/16-B | CF-11/16-SB | 0,6875 | 0,4375 | 0,25 | 3/4 | 16/5 | 1/4-28 | 95 | 1215 | 955 | |
| CF-3/4-B | CF-3/4-SB | 0,75 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8-B | CF-7/8-SB | 0,875 | 0,5 | 0,375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 | 2065 | 1660 |
| CF-1-B | CF-1-SB | 1 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8-B | CF-1 1/8-SB | 1.125 | 0,625 | 0,4375 | 1 | 1/2 | 16/7-20 | 3/16 | 350 | 3060 | 2225 |
| CF-1 1/4-B | CF-1 1/4-SB | 1.25 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8-B | CF-1 3/8-SB | 1,375 | 0,75 | 0,5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 | 4250 | 3930 |
| CF-1 1/2-B | CF-1 1/2-SB | 1.5 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8-B | CF-1 5/8-SB | 1.625 | 0,875 | 0,625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| CF-1 3/4-B | CF-1 3/4-SB | 1.75 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8-B | CF-1 7/8-SB | 1,875 | 1 | 0,75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| CF-2-B | CF-2-SB | 2 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4-B | CF-2 1/4-SB | 2.25 | 1.25 | 0,875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| CF-2 1/2-B | CF-2 1/2-SB | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4-B | CF-2 3/4-SB | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| CF-3-B | CF-3-SB | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4-B | CF-3 1/4-SB | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| CF-3 1/2-B | CF-3 1/2-SB | 3.5 | 2 | 1,375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| CF-4-B | CF-4-SB | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 2998 |
